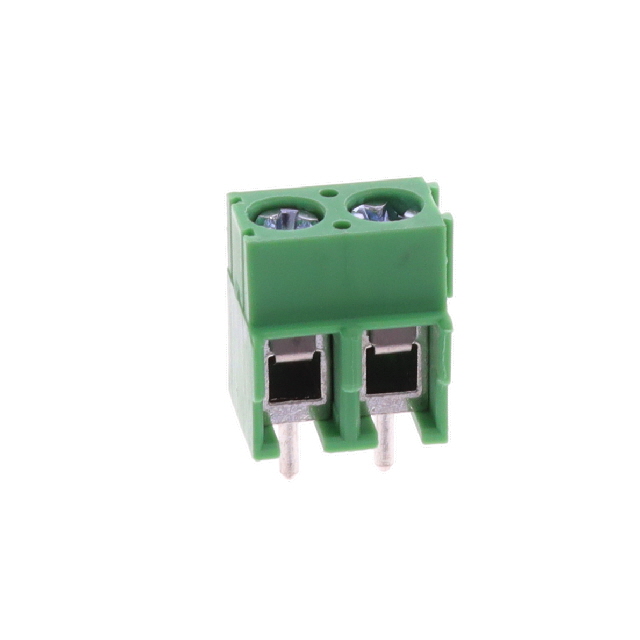

EB133-02-C
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Search across all available documentation for this part.
EB133-02-C
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB133-02-C |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Green |
| Contact Material - Plating | Tin |
| Current | 10 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 2 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2.6 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.67 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 400 | $ 0.19 | |||
Description
General part information
EB133 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
