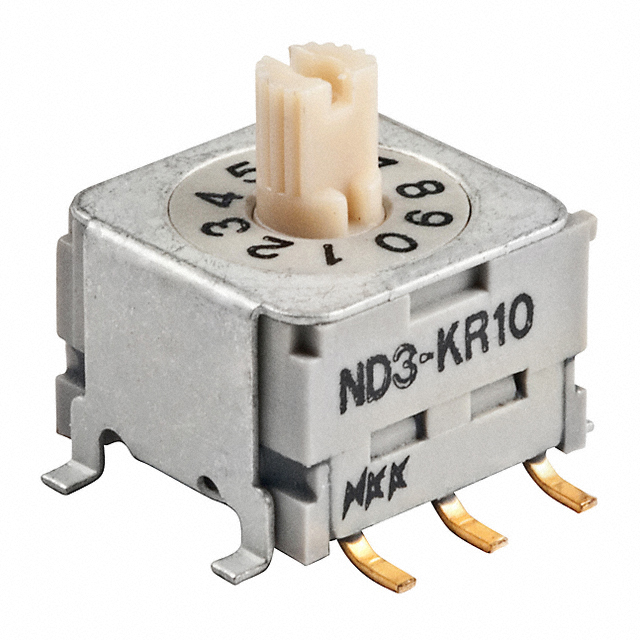

ND3KR10B

NKK Switches

SWITCH ROTARY DIP BCD 0.1A 5V

Search across all available documentation for this part.

NKK Switches

SWITCH ROTARY DIP BCD 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	ND3KR10B

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD
Contact Finish	Gold
Contact Material	Beryllium Copper
Current Rating (Amps)	100 mA
Electrical Life	20000 Steps
Features	Epoxy Sealed Terminals
Height Above Board	8.8 mm
Height Above Board	0.346 in
Length [x]	8.13 mm
Length [x]	0.32 in
Mechanical Life	20000 Cycles
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	True

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Actuator Type	Contact Finish	Height Above Board	Height Above Board	Electrical Life	Body Material	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Termination Style	Length [x]	Length [x]	Circuit	Current Rating (Amps)	Mounting Type	Features	Mechanical Life	Voltage Rating
NKK Switches ND3KR10B	-25 °C	85 °C	10	Beryllium Copper	Rotary with Shaft	Gold	8.8 mm	0.346 in	20000 Steps	Polyamide (PA) Nylon Glass Filled	Raised	0.1 in	Full	2.54 mm	Gull Wing	8.13 mm	0.32 in	BCD	100 mA	Surface Mount	Epoxy Sealed Terminals	20000 Cycles	5 V
NKK Switches ND3KR10H	-25 °C	85 °C	10	Beryllium Copper	Rotary with Shaft	Gold	8.03 mm	0.316 in	20000 Steps	Polyamide (PA) Nylon Glass Filled	Raised	0.05 in		1.27 mm	Gull Wing	8.13 mm	0.32 in	BCD	100 mA	Surface Mount Right Angle	Epoxy Sealed Terminals	20000 Cycles	5 V
NKK Switches ND3KR10P	-25 °C	85 °C	10	Beryllium Copper	Rotary with Shaft	Gold	8.8 mm	0.346 in	20000 Steps	Polyamide (PA) Nylon Glass Filled	Raised	0.1 in	Full	2.54 mm	Gull Wing	8.13 mm	0.32 in	BCD	100 mA	Surface Mount	Epoxy Sealed Terminals	20000 Cycles	5 V
NKK Switches ND3KR10H-R	-25 °C	85 °C	10	Beryllium Copper	Rotary with Shaft	Gold	8.03 mm	0.316 in	20000 Steps	Polyamide (PA) Nylon Glass Filled	Raised	0.05 in		1.27 mm	Gull Wing	8.13 mm	0.32 in	BCD	100 mA	Surface Mount Right Angle	Epoxy Sealed Terminals	20000 Cycles	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Surface Mount Rotary with Shaft Actuator 100mA 5VDC
