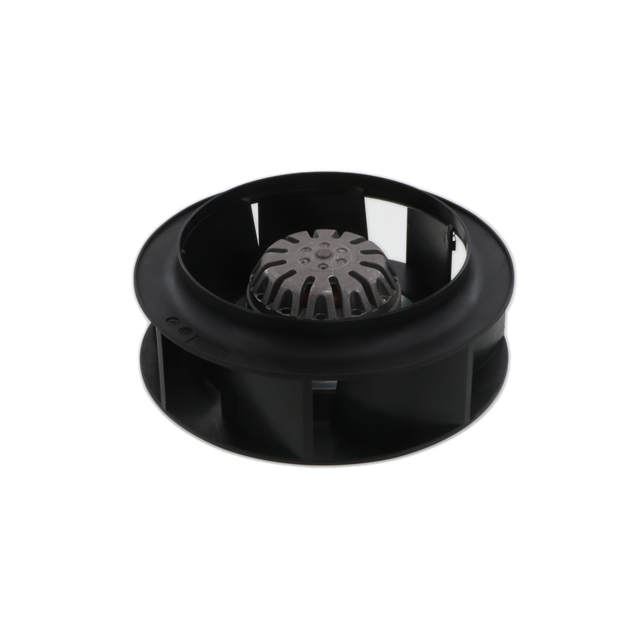

R2S175-AA07-39

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R2S175-AA07-39

Approval Agency	CE, EAC
Bearing Type	Ball
Current Rating (Amps)	0.33 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP)
Material - Blade	Polyamide (PA), Nylon
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	57 W
RPM	2440 RPM
Size / Dimension [diameter]	175 mm Dia
Termination	3 Wire Leads with QC Receptacles
Voltage - Rated	230 VAC
Width [x]	69 mm

Part	Air Flow	Air Flow	Fan Type	Power (Watts)	Termination	Voltage - Rated	Width [x]	Bearing Type	Weight	Weight	Noise	Material - Blade	Size / Dimension [diameter]	Approval Agency	Current Rating (Amps)	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features
ebm-papst Inc. R2S175-AB56-30	7.08 m³/min	253 CFM	Motorized Impellers	60 W	2 Wire Leads	230 VAC	62 mm	Ball	907.2 g	2 lbs	54 dB	Nylon Polyamide (PA)	175 mm Dia
ebm-papst Inc. R2S175-AA07-39			Motorized Impellers	57 W	3 Wire Leads with QC Receptacles	230 VAC	69 mm	Ball				Nylon Polyamide (PA)	175 mm Dia	CE EAC	0.33 A	2440 RPM	-25 °C	40 °C	40 °C	-25 °C	Thermal Overload Protector (TOP)
ebm-papst Inc. R2S175-AB60-38	7.08 m³/min	253 CFM	Motorized Impellers	65 W	2 Wire Leads	115 VAC	62 mm	Ball	907.2 g	2 lbs	54 dB	Nylon Polyamide (PA)	175 mm Dia

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 175mm Dia Ball 3 Wire Leads with QC Receptacles
