Specification	ACPM-RB BULK

Actual Diameter	0.249 in
Body Color	Black, Silver
Cable Opening (Max)	0.256 in
Cable Opening (Min)	0.118 in
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating	Nickel
Current Rating	10 A
Gender	Male
Housing Material	Zinc Die Cast
Industry Recognized Mating Diameter (Headphone)	6.35 mm
Internal Switch(s)	Does Not Contain Switch
Mating Length/Depth	1.205 in
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Conductors	2 Conductors
Number of Contacts	2 Contacts
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

ACPM Series

Part	Connector Type	Shielding	Internal Switch(s)	Number of Contacts	Number of Conductors	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Gender	Actual Diameter	Industry Recognized Mating Diameter (Headphone)	Signal Lines	Contact Material	Current Rating	Body Color	Includes Total Count	Includes	Mating Length/Depth	Housing Material	Contact Material - Plating	Cable Opening (Min)	Cable Opening (Max)
McGill Microwave Systems ACPM-GB-AU	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line)	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A	Black Gold	3 pcs	Connector Handle Insulator Tube	1.19 in	Zinc Alloy	Gold

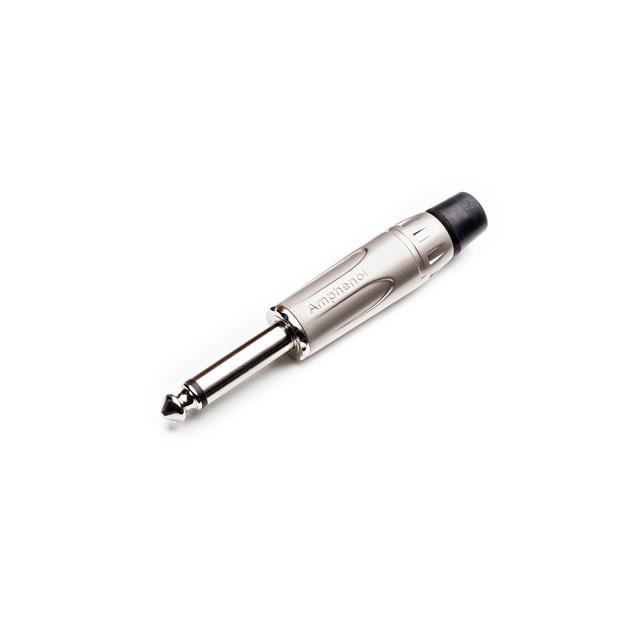

McGill Microwave Systems ACPM-KN-AU	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line)	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A	Gold Silver			1.19 in	Zinc Alloy	Gold
McGill Microwave Systems ACPM-GB BULK	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line)	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A	Black Silver			1.19 in	Zinc Die Cast	Nickel	0.118 in	0.256 in

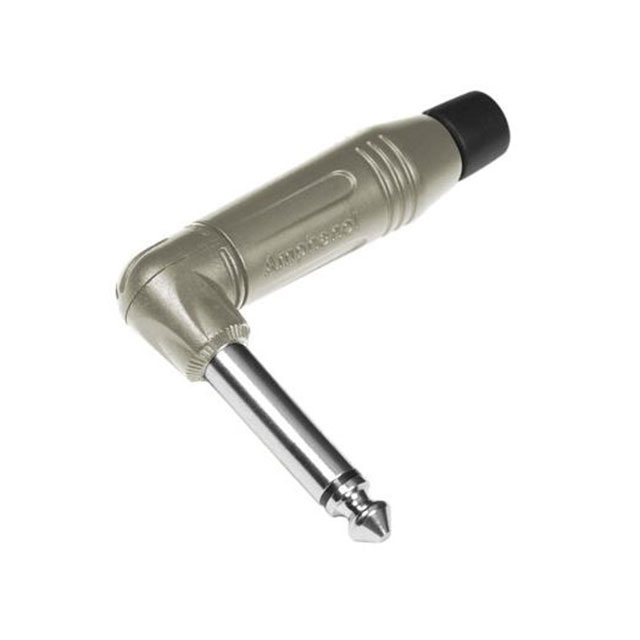

McGill Microwave Systems ACPM-RN-AU	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line)	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A		4 pcs	Cap Connector Handle Sleeve	1.2 in	Zinc Alloy	Gold
McGill Microwave Systems ACPM-RB-AU	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line)	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A	Black Gold	4 pcs	Cap Connector Handle Sleeve	1.2 in	Zinc Alloy	Gold
McGill Microwave Systems ACPM-GN	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line)	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A	Silver	3 pcs	Connector Handle Insulator Tube	1.19 in	Zinc Alloy	Nickel
McGill Microwave Systems ACPM-RB BULK	Phone Plug	Unshielded	Does Not Contain Switch	2 Contacts	2 Conductors	Free Hanging (In-Line) Right Angle	70 °C	-25 °C	Solder Eyelet(s)	Male	0.249 in	6.35 mm	Mono	Brass	10 A	Black Silver			1.205 in	Zinc Die Cast	Nickel	0.118 in	0.256 in
