Specification	DP-102A-N-P-J

Applications	Industrial Automation
Maximum Pressure (Max)	217.56 PSI
Maximum Pressure (Min)	-21.76 PSI
Operating Pressure (Max)	145.04 PSI
Operating Pressure (Min)	-14.5 PSI
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-10 °C
Output Type	Analog Current, Voltage, PNP - Open Collector
Package / Case	Module
Port Code	M5
Port Diameter	1 in
Port Feature	NPT
Port Gender	Female, Male
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Connector
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	12 VDC

DP-102 Series

Part	Port Style	Output Type	Package / Case	Port Code	Port Feature	Port Gender	Port Diameter	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Operating Pressure (Max)	Operating Pressure (Min)	Pressure Type	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Maximum Pressure (Max)	Maximum Pressure (Min)	Maximum Pressure
Panasonic Industrial Automation Sales DP-102-J	Threaded	NPN - Open Collector	Module	M5	BSPT	Female Male	0.25 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102-E-P-J	Threaded	PNP - Open Collector	Module	M5		Female Male	0.125 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI

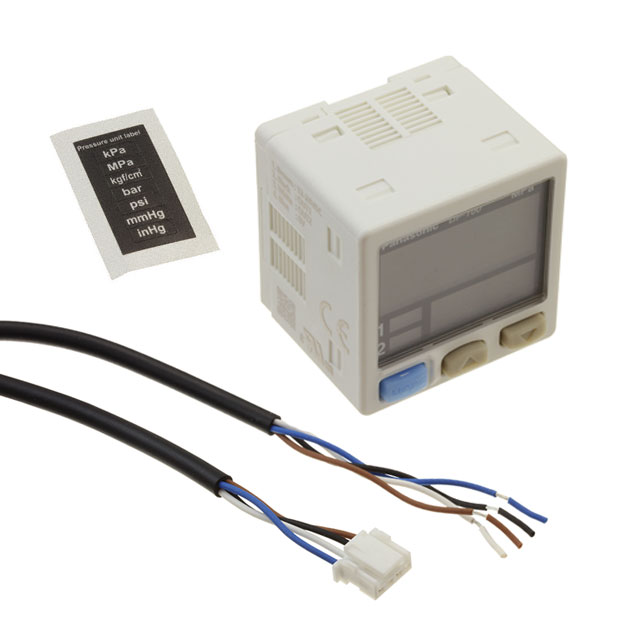

Panasonic Industrial Automation Sales DP-102-M-P	Threaded	PNP - Open Collector	Module Box with Display	M5		Female		12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102A-E-P-J	Threaded	Analog Current PNP - Open Collector Voltage	Module	M5		Female Male	0.125 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102A-J	Threaded	Analog Current NPN - Open Collector Voltage	Module	M5	BSPT	Female Male	0.125 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102-E-P	Threaded	PNP - Open Collector	Module	M5		Female Male	0.125 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102A-M	Threaded	Analog Current NPN - Open Collector Voltage	Module	M5		Female		12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102A-N-P-J	Threaded	Analog Current PNP - Open Collector Voltage	Module	M5	NPT	Female Male	1 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI
Panasonic Industrial Automation Sales DP-102ZL3-M-P	Threaded	PNP - Open Collector	Module Box with Display	M5		Female		12 VDC	24 VAC	Cable	145.04 PSI	-14.5 PSI	Gauge	-10 °C	50 °C	Industrial Automation			217.56 PSI
Panasonic Industrial Automation Sales DP-102-N-P-J	Threaded	PNP - Open Collector	Module	M5	NPT	Female Male	1 in	12 VDC	24 VAC	Connector	145.04 PSI	-14.5 PSI	Vented Gauge	-10 °C	50 °C	Industrial Automation	217.56 PSI	-21.76 PSI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DP-102A-N-P-J | Datasheet
