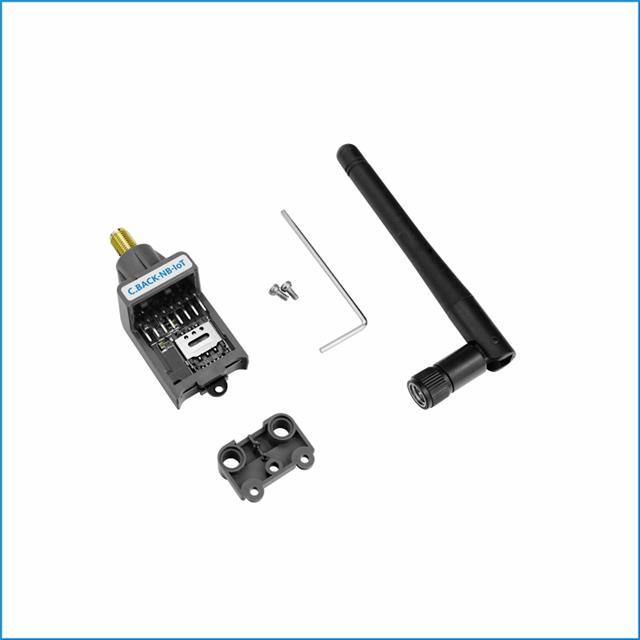

A113

Active

M5Stack Technology Co., Ltd.

C-BACK NB-LOT GLOBAL VERSION (SI

Search across all available documentation for this part.

Active

M5Stack Technology Co., Ltd.

C-BACK NB-LOT GLOBAL VERSION (SI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A113	- Series

Applications	Monitors	Monitors
Connector Type	-	Header
Contact Shape	-	Square
Contact Type	-	Male Pin
Data Rate (Max) [Max]	115.2 kbps	115.2 kbps
Fastening Type	-	Latch Holder
Features	Antenna Included	Antenna Included, Solder Retention, Board Guide
Function	Transmitter	Transmitter
Insulation Color	-	Natural
Interface	UART	UART
Mounting Type	-	Surface Mount, Right Angle
Number of Positions	-	4
Number of Positions Loaded	-	All
Number of Rows	-	1
Operating Temperature	-	-25 °C
Operating Temperature	-	105 ░C
Pitch - Mating	-	0.079 in
Pitch - Mating	-	2 mm
Shrouding	-	Shrouded - 4 Wall
Style	-	Board to Cable/Wire
Termination	-	Solder

C-BACK NB-LOT GLOBAL VERSION (SI

Part	Function	Applications	Data Rate (Max) [Max]	Features	Interface	Insulation Color	Mounting Type	Number of Positions	Fastening Type	Number of Positions Loaded	Contact Shape	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Style	Shrouding	Termination
M5Stack Technology Co., Ltd. A113	Transmitter	Monitors	115.2 kbps	Antenna Included	UART
M5Stack Technology Co., Ltd. A118				Board Guide, Solder Retention		Natural	Surface Mount, Right Angle	4	Latch Holder	All	Square	1	0.079 in	2 mm	-25 °C	105 ░C	Header	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.95

General part information

RF Transmitter UART 115.2kbps
