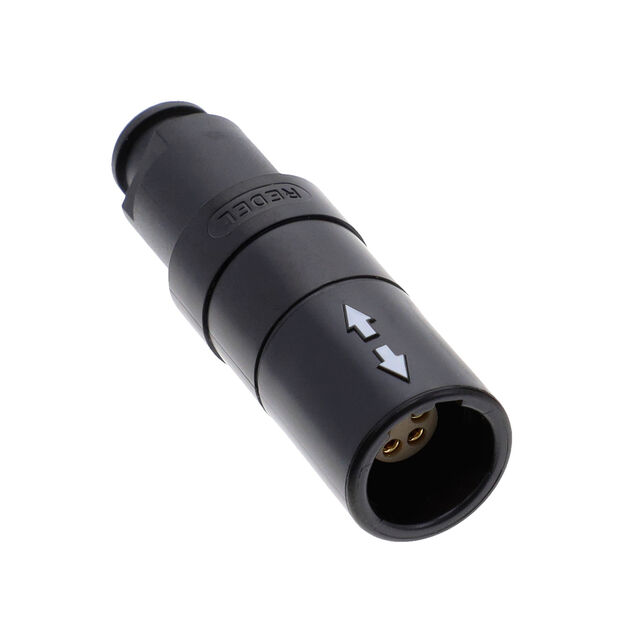

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PRA.M0.5TL.LC39NZ | 1P Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Cable Opening | - | 0.157 in |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 4 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 0.209 - 0.256 in |
| Cable Opening | - | 5.3 - 6.5 mm |
| Cable Opening [Max] [diameter] | 0.154 in | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in | 0.106 in |
| Color | Black | Gray, Black, Red, Blue |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins, Receptacle, Female Sockets, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 7 A | 2 - 10 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell, Board Guide |
| Ingress Protection | IP50 | IP50, IP64 - Dust Tight, Water Resistant |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | - | Front and Rear Side Nut, Bulkhead - Front or Rear Side Nut, Bulkhead - Rear Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle |
| Number of Positions | - | 2 - 14 |
| Operating Temperature [Max] | 170 °C | 90 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | A | G, B, A, H |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | M05 | M06, M14, M02, M05, M08, M04, M10, N04 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Solder, Crimp |
1P Series
Standard Circular Connector
| Part | Connector Type | Applications | Backshell Material, Plating | Mounting Type | Insert Material | Contact Finish - Mating | Features | Current Rating (Amps) | Orientation | Color | Shell Material | Primary Material | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Number of Positions | Fastening Type | Shielding | Mounting Feature | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Termination | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PAG.M0.6GL.AC39G | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 6 A | G | Gray | Polysulfone (PSU) | Plastic | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP50 | 150 °C | -50 °C | M06 | 6 | Detent Lock, Push-Pull | Unshielded | ||||||||
LEMO PKB.M1.4GL.LZ | Receptacle, Female Sockets | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Gold | 2 A | B | Gray | Polysulfone (PSU) | Plastic | IP50 | 150 °C | -50 °C | M14 | 14 | Detent Lock, Push-Pull | Unshielded | Front and Rear Side Nut | ||||||||||||||
Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 10 A | G | Gray | Polysulfone (PSU) | Plastic | IP50 | 150 °C | -50 °C | M02 | 2 | Detent Lock, Push-Pull | Unshielded | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||||
Receptacle, Female Sockets | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polyetherimide (PEI) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 7 A | A | Black | Polyetherimide (PEI) | Plastic | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP50 | 170 °C | -50 °C | M05 | Detent Lock, Push-Pull | Unshielded | ||||||||||
LEMO PXG.M0.8GG.NR | Receptacle, Female Sockets | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Panel Mount, Right Angle, Through Hole | Gold | Backshell | 5 A | G | Gray, Red | Polysulfone (PSU) | Plastic | IP50 | 150 °C | -50 °C | M08 | 8 | Detent Lock, Push-Pull | Unshielded | Bulkhead - Front or Rear Side Nut | Solder | |||||||||||
LEMO PKG.M0.4SL.NG | Receptacle, Female Sockets | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Gold | 8 A | G | Gray | Polyetherimide (PEI) | Plastic | IP50 | 170 °C | -50 °C | M04 | 4 | Detent Lock, Push-Pull | Unshielded | Front and Rear Side Nut | Solder | ||||||||||||
LEMO PAB.M1.0GL.AC39G | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 3 A | B | Gray | Polysulfone (PSU) | Plastic | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP50 | 150 °C | -50 °C | M10 | 10 | Detent Lock, Push-Pull | Unshielded | ||||||||
LEMO PRG.M0.4GL.LC52G | Receptacle, Female Sockets | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 8 A | G | Gray | Polysulfone (PSU) | Plastic | IP50 | 150 °C | -50 °C | M04 | 4 | Detent Lock, Push-Pull | Unshielded | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||||||
LEMO PAG.M0.4GL.AZGK | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 8 A | G | Gray | Polysulfone (PSU) | Plastic | IP50 | 150 °C | -50 °C | M04 | 4 | Detent Lock, Push-Pull | Unshielded | ||||||||||||
Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polysulfone (PSU) | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Gold | Backshell | 5 A | G | Black | Polysulfone (PSU) | Plastic | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | IP64 - Dust Tight, Water Resistant | 90 °C | -50 °C | M08 | 8 | Detent Lock, Push-Pull | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1P Series
Standard Circular Connector
