General part information

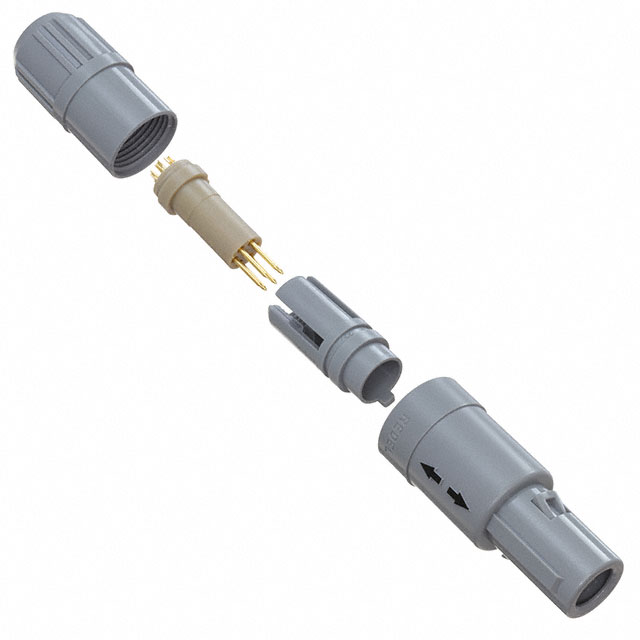

6 Position Circular Connector Plug, Male Pins Solder Cup
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | PAG.M0.6GL.AC39G | PAG.M0 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU), Polyetherimide (PEI) |
| Cable Opening | - | 0.157 in |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 4 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 0.209 - 0.256 in |
| Cable Opening | - | 5.3 - 6.5 mm |
| Cable Opening [Max] [diameter] | 0.154 in | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in | 0.106 in |
| Color | Gray | Gray, Black, Blue, Green, Red, Yellow, White |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Insert, Female Sockets, Plug Housing |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 6 A | 3 - 10 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell, Insert Only, Requires Shell |
| Housing Color | - | Black |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 6 | 2 - 9 |
| Operating Temperature [Max] | 150 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | G | G |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | M06 | M08, M05, M06, M04, M09, M02 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Type | - | For Male Pins |
CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Connector Type | Applications | Contact Finish - Mating | Insert Material | Features | Shell Size - Insert | Ingress Protection | Shielding | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Backshell Material, Plating | Mounting Type | Color | Orientation | Number of Positions | Current Rating (Amps) | Shell Material | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] | Termination | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Housing Color | Type | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M08 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | Gray | G | 8 | 5 A | Polysulfone (PSU) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||||||
LEMO PAG.M0.5TL.AC52N | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M05 | IP50 | Unshielded | Plastic | 170 °C | -50 °C | Detent Lock, Push-Pull | Polyetherimide (PEI) | Free Hanging (In-Line) | Black | G | 7 A | Polyetherimide (PEI) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||||||
LEMO PAG.M0.6GL.CC65N | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M06 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | G | 6 | 6 A | Polysulfone (PSU) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | Crimp | ||||||||||||
Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M05 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | Gray | G | 7 A | Polysulfone (PSU) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||||||||||
LEMO PAG.M0.8GL.CC52G | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M08 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | Gray | G | 8 | 5 A | Polysulfone (PSU) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Crimp | |||||||||
LEMO PAG.M0.4GL.AC65Z | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M04 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | Gray | G | 4 | 8 A | Polysulfone (PSU) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | ||||||||||||
LEMO PAG.M0.6NL.CC52G | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M06 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | G | 6 | 6 A | Polysulfone (PSU) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Crimp | ||||||||||
LEMO PAG.M0.7GL.CC65N | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | G | 7 | 5 A | Polysulfone (PSU) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | Crimp | |||||||||||||
LEMO PAG.M0.4GL.AC52A | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M04 | IP50 | Unshielded | Plastic | 150 °C | -50 °C | Detent Lock, Push-Pull | Polysulfone (PSU) | Free Hanging (In-Line) | Blue, Gray | G | 4 | 8 A | Polysulfone (PSU) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||||||||
LEMO PAG.M0.6TL.AC65Z | Male Pins, Plug | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | Backshell | M06 | IP50 | Unshielded | Plastic | 170 °C | -50 °C | Detent Lock, Push-Pull | Polyetherimide (PEI) | Free Hanging (In-Line) | Black | G | 6 | 6 A | Polyetherimide (PEI) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm |
