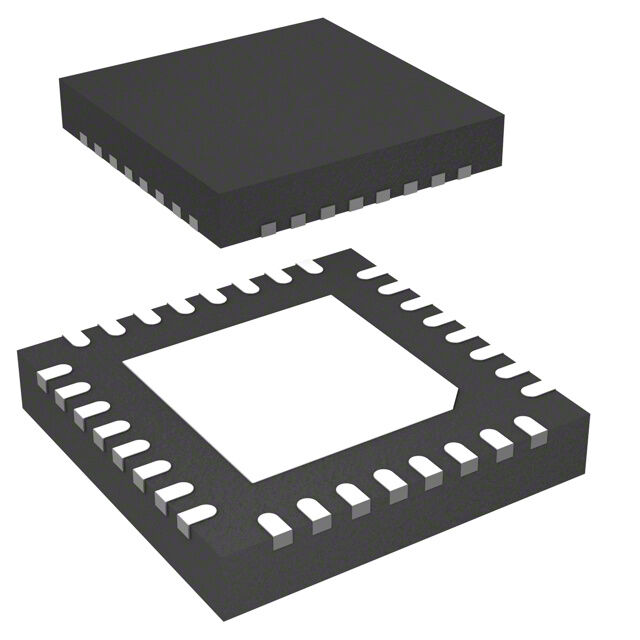

TMC262C-LA
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPLR 3.3-5.5V 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
TMC262C-LA
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPLR 3.3-5.5V 32QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC262C-LA | TMC262 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Contents | - | Board(s) |
| Embedded | - | Yes, MCU |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Interface | Step/Direction, SPI | Step/Direction, SPI |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Pre-Driver - Half Bridge (4) | Pre-Driver - Half Bridge (4) |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | SPI Interface(s), SPI Interface |
| Step Resolution [Max] | 1 | 1 |
| Step Resolution [Min] | 0.00390625 | 0.00390625 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) |
| Technology | Power MOSFET | Power MOSFET |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC262, TMC26230 |
| Voltage - Load [Max] | 59 V | 59 V |
| Voltage - Load [Min] | 9 V | 9 V |
| Voltage - Supply [Max] | 5.25 V | 5.25 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.74 | |
| 10 | $ 5.41 | |||
| 25 | $ 4.87 | |||
TMC262 Series
BREAKOUTBOARD WITH TMC262
| Part | Utilized IC / Part | Type | Primary Attributes | Secondary Attributes | Supplied Contents | Contents | Motor Type - Stepper | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Step Resolution [Max] | Step Resolution [Min] | Interface | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Output Configuration | Technology | Package / Case | Function | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC262-BOB60 | TMC262 | Power Management | Motors (Stepper) | SPI Interface(s) | Board(s) | Board(s) | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC262-BOB40 | TMC262 | Power Management | Motors (Stepper) | SPI Interface(s) | Board(s) | Board(s) | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC262-LA | Bipolar | General Purpose | -40 °C | 125 ¯C | 32-QFN (5x5) | 1 | 0.00390625 | SPI, Step/Direction | Surface Mount | 5.25 V | 3 V | 9 V | 59 V | Pre-Driver - Half Bridge (4) | Power MOSFET | 32-VFQFN Exposed Pad | Controller - Commutation, Direction Management | |||||||
Analog Devices Inc./Maxim Integrated TMC262-BOB30 | TMC262, TMC26230 | Power Management | Motors (Stepper) | SPI Interface, SPI Interface(s) | Board(s) | Yes, MCU | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC262-LA-T | Bipolar | General Purpose | -40 °C | 125 ¯C | 32-QFN (5x5) | 1 | 0.00390625 | SPI, Step/Direction | Surface Mount | 5.25 V | 3 V | 9 V | 59 V | Pre-Driver - Half Bridge (4) | Power MOSFET | 32-VFQFN Exposed Pad | Controller - Commutation, Direction Management | |||||||
Analog Devices Inc./Maxim Integrated TMC262C-LA-T | Bipolar | General Purpose | -40 °C | 125 ¯C | 32-QFN (5x5) | 1 | 0.00390625 | SPI, Step/Direction | Surface Mount | 5.25 V | 3 V | 9 V | 59 V | Pre-Driver - Half Bridge (4) | Power MOSFET | 32-VFQFN Exposed Pad | Controller - Commutation, Direction Management | |||||||
Analog Devices Inc./Maxim Integrated TMC262C-LA | Bipolar | General Purpose | -40 °C | 125 ¯C | 32-QFN (5x5) | 1 | 0.00390625 | SPI, Step/Direction | Surface Mount | 5.25 V | 3 V | 9 V | 59 V | Pre-Driver - Half Bridge (4) | Power MOSFET | 32-VFQFN Exposed Pad | Controller - Commutation, Direction Management |
Description
General part information
TMC262 Series
Bipolar Motor Driver Power MOSFET SPI, Step/Direction 32-QFN (5x5)
