3-794618-4

Active

TE Connectivity AMP Connectors

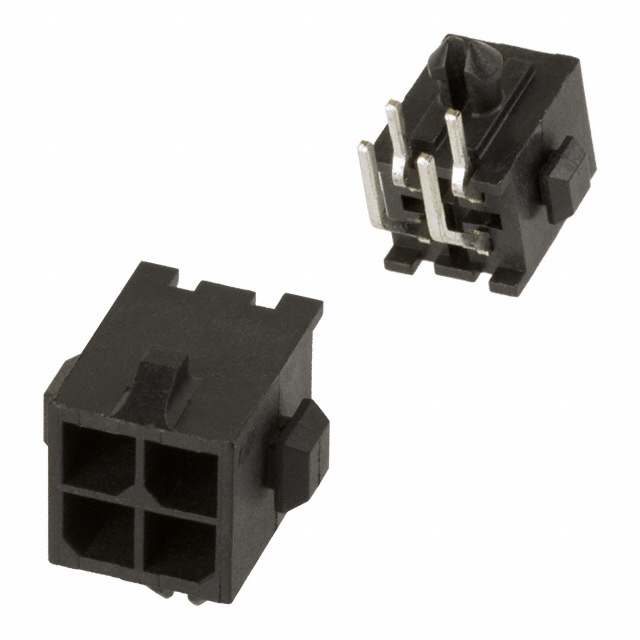

CONN HEADER R/A 4POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-794618-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.36
		10	$ 1.27
		377	$ 1.06
		754	$ 0.97
		1131	$ 0.87
		4901	$ 0.81
		10179	$ 0.73

Description

General part information

794618 Series

Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794618-4	794618 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794618 Series

CONN HEADER R/A 4POS 3MM

Part	Voltage Rating	Contact Material	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Number of Rows	Contact Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Color	Mounting Type	Number of Positions	Connector Type	Insulation Height	Insulation Height	Shrouding	Current Rating (Amps)	Insulation Material	Number of Positions Loaded	Contact Shape	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 3-794618-4	250 VDC	Brass	UL94 V-0	Tin	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	4	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C
TE Connectivity AMP Connectors 4-794618-0	250 VDC	Brass	UL94 V-0	Tin	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	10	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C
TE Connectivity AMP Connectors 794618-6	250 VDC	Brass	UL94 V-0	Tin-Lead	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	6	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C	Tin-Lead
TE Connectivity AMP Connectors 2-794618-4	250 VDC	Brass	UL94 V-0	Tin-Lead	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	24	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C	Tin-Lead
TE Connectivity AMP Connectors 4-794618-6	250 VDC	Brass	UL94 V-0	Tin	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle		Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C		16
TE Connectivity AMP Connectors 794618-8	250 VDC	Brass	UL94 V-0	Tin-Lead	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	8	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C	Tin-Lead
TE Connectivity AMP Connectors 794618-2	250 VDC	Brass	UL94 V-0	Tin-Lead	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	2	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp			-40 °C	105 ░C	Tin-Lead
TE Connectivity AMP Connectors 3-794618-6	250 VDC	Brass	UL94 V-0	Tin	2.54 µm	100 µin	General Purpose	2	Male Pin	Solder	2.54 çm	100 çin	3 mm	0.118 in	Board to Cable/Wire	Black	Through Hole, Right Angle	6	Header	7.37 mm	0.29 in	Shrouded - 4 Wall	Varies by Wire Gauge	Nylon, Polyamide (PA)	All	Square	Locking Ramp	0.118 in	3 mm	-40 °C	105 ░C
