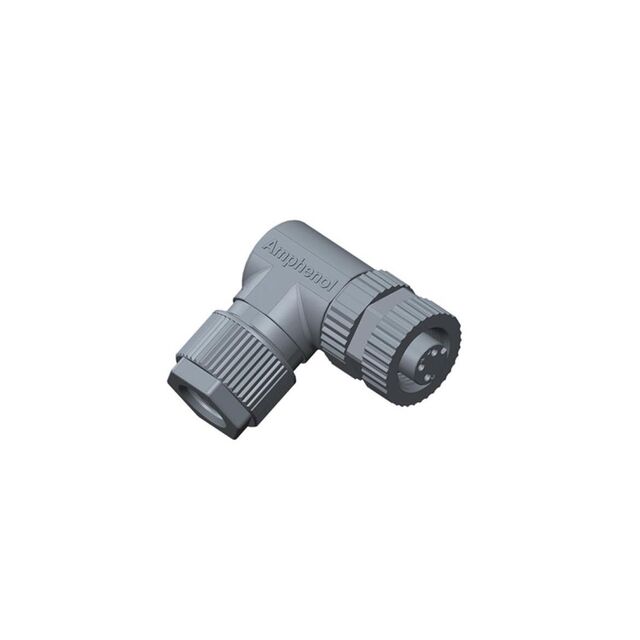

MSAP-03BFFB-SR7001

Active

Amphenol LTW

CONNECTOR: M12; PLUG; PIN: 3; FEMALE; 250V; ANGLED 90°; IP67,IP68

Search across all available documentation for this part.

Active

Amphenol LTW

CONNECTOR: M12; PLUG; PIN: 3; FEMALE; 250V; ANGLED 90°; IP67,IP68

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-03BFFB-SR7001

Cable Opening [Max] [diameter]	0.276 in
Cable Opening [Max] [diameter]	7 mm
Cable Opening [Min] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.157 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-3
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VDC

Part	Orientation	Features	Primary Material	Ingress Protection	Termination	Contact Finish - Mating	Mounting Type	Voltage Rating	Contact Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Current Rating (Amps)	Color	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Amphenol LTW MSAP-03BFFB-SR7001	A	Backshell Coupling Nut	Plastic	IP67 - Dust Tight Waterproof	Screw	Gold	Free Hanging (In-Line) Right Angle	250 VDC	Copper Alloy	Unshielded	-40 °C	105 ░C	M12-3	Nylon Polyamide (PA)	4 A	Black	Female Sockets Plug	0.276 in	4 mm	0.157 in	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Screw
