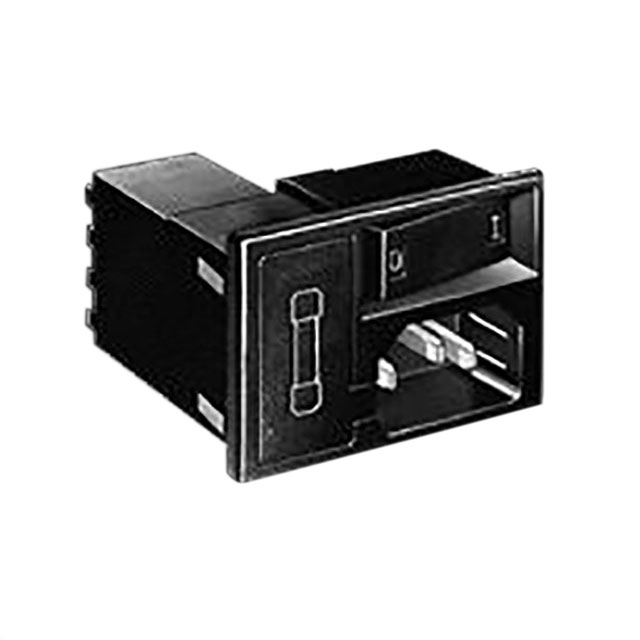

42R37-3154-150

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Specification	42R37-3154-150	42R37 Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	49 mm	49 mm
Panel Cutout Dimensions [y]	36.5 mm	36.5 mm
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect, Solder

Part	Panel Thickness [custom]	Panel Thickness [custom]	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Termination	Termination	Termination	Material Flammability Rating	Switch Features	Approval Agency	Filter Type	Mounting Type	Fuse Holder, Drawer
Power Dynamics, Inc. 42R37-3154-150	0.059 in	1.5 mm	IEC 320-C14	49 mm	36.5 mm	Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	UL94 V-0	Switch On-Off	CSA, UL, VDE	Unfiltered - Commercial	Panel Mount, Snap-In	Fuse Holder, Twin Fused
Power Dynamics, Inc. 42R37-3124-150			IEC 320-C14	49 mm	36.5 mm	Receptacle, Male Blades - Module			Solder	UL94 V-0		CSA, UL, VDE		Panel Mount, Snap-In
Power Dynamics, Inc. 42R37-3154-160			IEC 320-C14	49 mm	36.5 mm	Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect	UL94 V-0		CSA, UL, VDE		Panel Mount, Snap-In
