EH35MMSSC
ActiveSwitchcraft Inc.

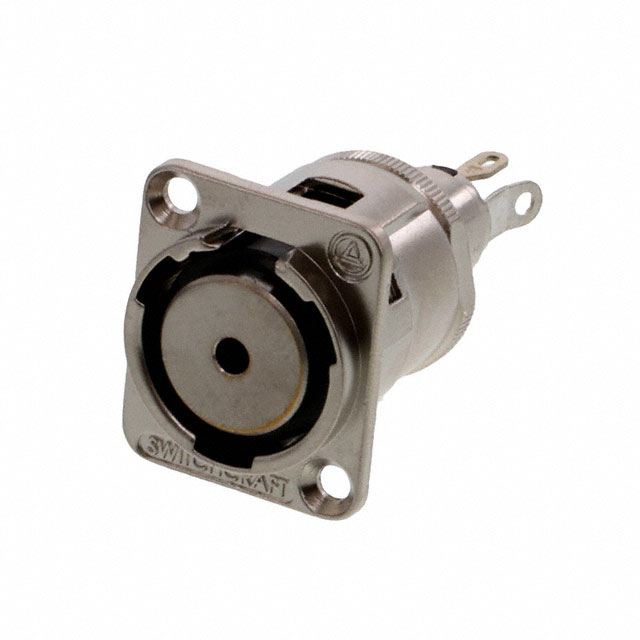

CONN JACK STEREO 3.5MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EH35MMSSC
ActiveSwitchcraft Inc.
CONN JACK STEREO 3.5MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EH35MMSSC | EH35MM Series |
|---|---|---|
| Actual Diameter [diameter] | 0.142 in | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm | 3.6 mm |
| Body Color | Silver | Silver, Black |
| Body Finish | - | Nickel |
| Body Material | Zinc Alloy | Copper Alloy, Zinc Alloy |
| Connector Type | Phone Jack | Phone Jack |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating [custom] | Silver | Silver |
| Conversion Type | - | Same Series |
| Convert From (Adapter End) | - | Phone Jack, Stereo |
| Convert From (Adapter End) | - | 0.125 " |
| Convert From (Adapter End) | - | 3.5 mm |
| Convert From (Adapter End) | - | 0.141 " |
| Convert To (Adapter End) | - | - |
| Convert To (Adapter End) | - | Stereo, Phone Jack |
| Convert To (Adapter End) | - | 0.141 in |
| Convert To (Adapter End) | - | 3.5 mm |
| Features | - | Mounting Hardware |
| Gender | Female | Female to Female, Female |
| Housing Material | Thermoplastic | Thermoplastic |
| Includes | 1 Nut, 1 Connector, 1 Housing | 2 Screws, 1 Connector, 1 Nut, 1 Housing |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | False | False |
| Mounting Feature | - | Flange |
| Number of Positions/Contacts | - | 2 Conductors |
| Number of Positions/Contacts [custom] | 3 | 2 - 3 |
| Number of Positions/Contacts [custom] | 3 | 2 - 3 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Panel Hole Size [diameter] | 24 mm | 24 mm |
| Panel Hole Size [diameter] | 0.945 in | 0.945 in |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Stereo | Stereo, Mono |
EH35MM Series
ADAPT 3.5MM JACK TO 3.5MM JACK
| Part | Number of Positions/Contacts | Conversion Type | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Gender | Shielding | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Includes | Body Finish | Body Material | Features | Mounting Feature | Connector Type | Contact Material | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Signal Lines | Internal Switch(s) | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Body Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating [custom] | Actual Diameter [diameter] | Actual Diameter [diameter] | Panel Hole Size [diameter] | Panel Hole Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EH35MM2PKG | 2 Conductors | Same Series | Phone Jack, Stereo | 0.125 " | 3.5 mm | 0.141 " | Female to Female | Unshielded | Phone Jack, Stereo | 0.141 in | 3.5 mm | 1 Connector, 2 Screws | Nickel | Copper Alloy | Mounting Hardware | Flange | |||||||||||||||||||
Switchcraft Inc. EH35MMSSC | Female | Unshielded | 1 Connector, 1 Housing, 1 Nut | Zinc Alloy | Phone Jack | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Stereo | Thermoplastic | 3 | 3 | Silver | -10 °C | 60 °C | Silver | 0.142 in | 3.6 mm | 24 mm | 0.945 in | ||||||||||||||
Switchcraft Inc. EH35MM2B | 2 Conductors | Same Series | Phone Jack, Stereo | 0.125 " | 3.5 mm | 0.141 " | Female to Female | Unshielded | Phone Jack, Stereo | 0.141 in | 3.5 mm | Nickel | Copper Alloy | Flange | |||||||||||||||||||||
Switchcraft Inc. EH35MM2 | 2 Conductors | Same Series | Phone Jack, Stereo | 0.125 " | 3.5 mm | 0.141 " | Female to Female | Unshielded | Phone Jack, Stereo | 0.141 in | 3.5 mm | Nickel | Copper Alloy | Flange | |||||||||||||||||||||
Switchcraft Inc. EH35MMMSCB | Female | Unshielded | 1 Connector, 1 Housing, 1 Nut | Zinc Alloy | Phone Jack | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Mono | Thermoplastic | 2 | 2 | Black, Silver | -10 °C | 60 °C | Silver | 0.142 in | 3.6 mm | 24 mm | 0.945 in | ||||||||||||||
Switchcraft Inc. EH35MMSSCB | Female | Unshielded | 1 Connector, 1 Housing, 1 Nut | Zinc Alloy | Phone Jack | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Stereo | Thermoplastic | 3 | 3 | Black, Silver | -10 °C | 60 °C | Silver | 0.142 in | 3.6 mm | 24 mm | 0.945 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.62 | |
| 10 | $ 17.43 | |||
| 25 | $ 15.78 | |||
| 50 | $ 14.67 | |||
| 100 | $ 13.65 | |||
| 250 | $ 12.46 | |||
| 500 | $ 11.66 | |||
Description
General part information
EH35MM Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Cup
