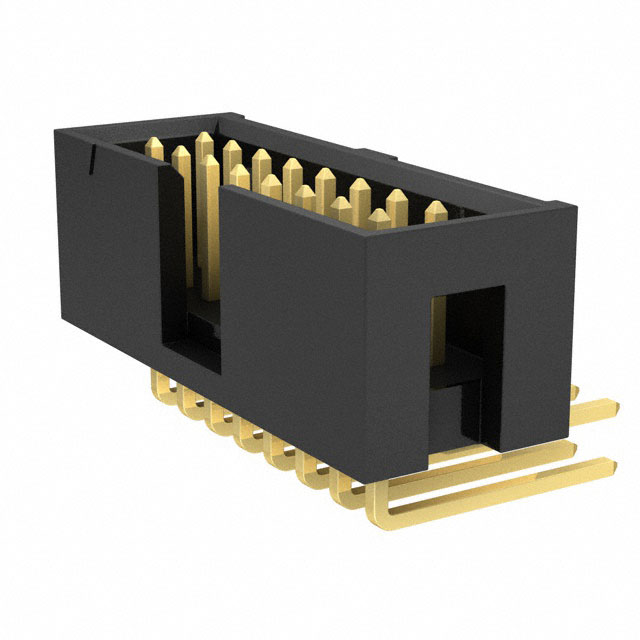

TST-108-04-G-D-RA

Active

Samtec Inc.

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TST-108-04-G-D-RA

Active

Samtec Inc.

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST-108-04-G-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.365 in
Insulation Height	9.27 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

TST-108 Series

Part	Fastening Type	Insulation Material	Contact Finish - Post	Style	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Connector Type	Contact Material	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Overall Contact Length	Overall Contact Length	Mounting Type	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Features	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating
Samtec Inc. TST-108-02-G-S	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Board to Cable/Wire	1	3 µin	0.076 µm	Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in	All	Black	13.46 mm	0.53 in	Through Hole	Shrouded - 4 Wall	0.35 in	8.89 mm	10 çin	0.25 çm	Solder	Square	8	-55 °C	125 °C	0.1 in	2.54 mm	0.165 in	4.19 mm	Male Pin	Keying Slot
Samtec Inc. TST-108-01-G-D-LL
Samtec Inc. TST-108-03-G-D
Samtec Inc. TST-108-02-G-D-01	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Board to Cable/Wire	2	3 µin	0.076 µm	Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in		Black	13.46 mm	0.53 in	Through Hole	Shrouded - 4 Wall	0.35 in	8.89 mm	10 çin	0.25 çm	Solder	Square		-55 °C	125 °C	0.1 in	2.54 mm	0.165 in	4.19 mm	Male Pin	Keying Slot	15	2.54 mm	0.1 in	16
Samtec Inc. TST-108-01-S-D	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Board to Cable/Wire	2			Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in	All	Black	12.19 mm	0.48 in	Through Hole	Shrouded - 4 Wall	0.35 in	8.89 mm	30 Áin	0.76 Ám	Solder	Square		-55 °C	125 °C	0.1 in	2.54 mm			Male Pin	Keying Slot		2.54 mm	0.1 in	16	2.92 mm	0.115 in
Samtec Inc. TST-108-01-G-D-14	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Board to Cable/Wire	2	3 µin	0.076 µm	Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in		Black	12.19 mm	0.48 in	Through Hole	Shrouded - 4 Wall	0.35 in	8.89 mm	10 çin	0.25 çm	Solder	Square		-55 °C	125 °C	0.1 in	2.54 mm			Male Pin	Keying Slot	15	2.54 mm	0.1 in	16	2.92 mm	0.115 in
Samtec Inc. TST-108-01-L-D-14	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Board to Cable/Wire	2			Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in		Black	12.19 mm	0.48 in	Through Hole	Shrouded - 4 Wall	0.35 in	8.89 mm	10 çin	0.25 çm	Solder	Square		-55 °C	125 °C	0.1 in	2.54 mm			Male Pin	Keying Slot	15	2.54 mm	0.1 in	16	2.92 mm	0.115 in
Samtec Inc. TST-108-04-G-D-RA	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Board to Cable/Wire	2	3 µin	0.076 µm	Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in	All	Black			Through Hole Right Angle	Shrouded - 4 Wall			10 çin	0.25 çm	Solder	Square		-55 °C	125 °C	0.1 in	2.54 mm			Male Pin	Keying Slot		2.54 mm	0.1 in	16	3.3 mm	0.13 in	0.365 in	9.27 mm
Samtec Inc. TST-108-02-F-D	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Board to Cable/Wire	2			Gold	Header	Phosphor Bronze	UL94 V-0	6.35 mm	0.25 in	All	Black	13.46 mm	0.53 in	Through Hole	Shrouded - 4 Wall	0.35 in	8.89 mm			Solder	Square		-55 °C	125 °C	0.1 in	2.54 mm	0.165 in	4.19 mm	Male Pin	Keying Slot		2.54 mm	0.1 in	16					Flash
Samtec Inc. TST-108-01-T-D-LL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.53
		50	$ 3.70
		100	$ 3.14
		500	$ 2.79
		1000	$ 2.60

Description

General part information

TST-108 Series

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
