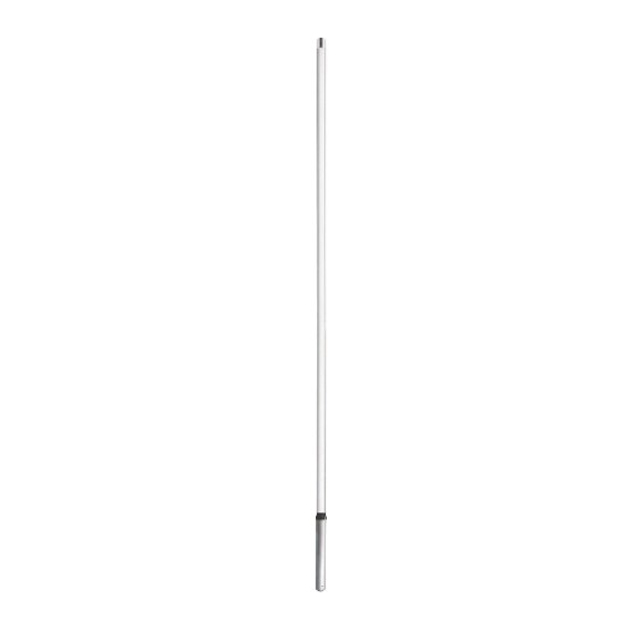

4250.09-875-T0

Active

Amphenol Procom

9DBD COLINEAR 0DEG DOWNTILT 79

Search across all available documentation for this part.

Active

Amphenol Procom

9DBD COLINEAR 0DEG DOWNTILT 79

Technical Specifications

Parameters and characteristics for this part

9DBD COLINEAR 0DEG DOWNTILT 79

Part	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Antenna Type	Gain	Ingress Protection	Height (Max) [Max]	Height (Max) [Max]	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Frequency (Center/Band)	VSWR	Mounting Type	Termination
Amphenol Procom 4250.09-875-T0	1	1 GHz	300 MHz	Whip, Straight	11.2 dBi	IP56	151.575 in	385 cm	790 MHz	960 MHz	480 W	875 MHz	1.5	Bracket Mount	7/16-DIN Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2365.67

General part information

RF ANTENNA Whip, Straight 7/16-DIN Female Bracket Mount

Technical documentation and resources

No documents available
