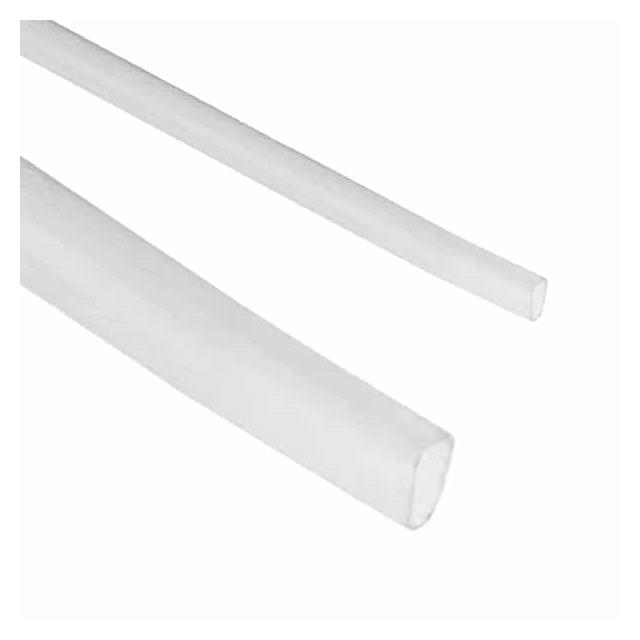

Specification	Q-150K-3/8-02-SS50M

Color	Clear
Features	Chemical Resistant, Flame Retardant, Cut-Through Resistant, Solvent Resistant, Abrasion Resistant
Inner Diameter - Recovered	0.187 in
Inner Diameter - Supplied	0.375 in
Length	164 ft
Material	Polyvinylidene Fluoride (PVDF)
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.012 in
Shelf Life	144 Months
Shrink Temperature	135 °C
Shrinkage Ratio	2
Storage/Refrigeration Temperature (Maximum)	104 °F
Storage/Refrigeration Temperature (Minimum)	-50 °F
Type	Flexible, Tubing

Q-150K Series

Part	Color	Shrinkage Ratio	Inner Diameter - Supplied	Shrink Temperature	Recovered Wall Thickness	Shelf Life	Inner Diameter - Recovered	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)	Features	Type	Length	Material	Operating Temperature (Max)	Operating Temperature (Min)
Qualtek Q-150K-1/8-02-QB6IN-20	Clear	2	0.125 in	135 °C	0.01 in	144 Months	0.062 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	0.5 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-1/8-01-SS200M	Black	2	0.125 in	135 °C	0.01 in	144 Months	0.062 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	656.2 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-3/32-02-QB6IN-24	Clear	2	0.093 in	135 °C	0.01 in	144 Months	0.049 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	0.5 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-1/2-01-QB48IN-5	Black	2	0.5 in	135 °C	0.012 in	144 Months	0.25 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	48 in	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-3/64-01-QB6IN-32	Black	2	0.046 in	135 °C	0.01 in	144 Months	0.023 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	0.5 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-3/64-02-QB48IN-25	Clear	2	0.046 in	135 °C	0.01 in	144 Months	0.023 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	48 in	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-3/8-01-SS50M	Black	2	0.375 in	135 °C	0.012 in	144 Months	0.187 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	164 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-3/8-02-SS50M	Clear	2	0.375 in	135 °C	0.012 in	144 Months	0.187 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	164 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-1/16-01-SS200M	Black	2	0.063 in	135 °C	0.01 in	144 Months	0.031 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	656.2 ft	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
Qualtek Q-150K-3/16-02-QB48IN-25	Clear	2	0.187 in	135 °C	0.01 in	144 Months	0.095 in	-50 °F	104 °F	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Solvent Resistant	Flexible Tubing	48 in	Polyvinylidene Fluoride (PVDF)	150 °C	-55 °C
