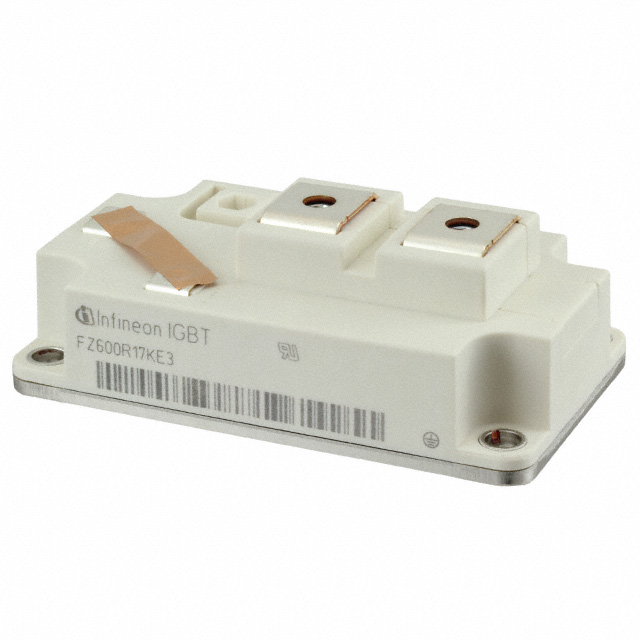

FZ600R17KE3HOSA1

Active

Infineon Technologies

THE FZ600R17KE3 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 600 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FZ600R17KE3 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 600 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FZ600R17KE3HOSA1

Configuration	Single
Current - Collector (Ic) (Max) [Max]	840 A
Current - Collector Cutoff (Max) [Max]	3 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	54 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	3150 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.45 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Configuration	Input Capacitance (Cies) @ Vce	IGBT Type	Input
Infineon Technologies FZ600R17KE3HOSA1	Module	-40 °C	125 ¯C	3 mA	840 A	Chassis Mount	3150 W	2.45 V	Module	1700 V	Single	54 nF	Trench Field Stop	Standard
Infineon Technologies FZ600R17KE3S4HOSA1	Module	-40 °C	125 °C	3 mA	1200 A	Chassis Mount	3150 W	2.45 V	Module	1700 V	Single	54 nF	Trench Field Stop	Standard
Infineon Technologies FZ600R17KE4HOSA1	Module			1 mA	1200 A	Chassis Mount	3350 W	2.3 V	Module	1700 V	Single	49 nF	Trench Field Stop	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 mm1700 V, 600 A single switchIGBT modulewith TRENCHSTOP™ IGBT 3 and Emitter Controlled 3 diode.
