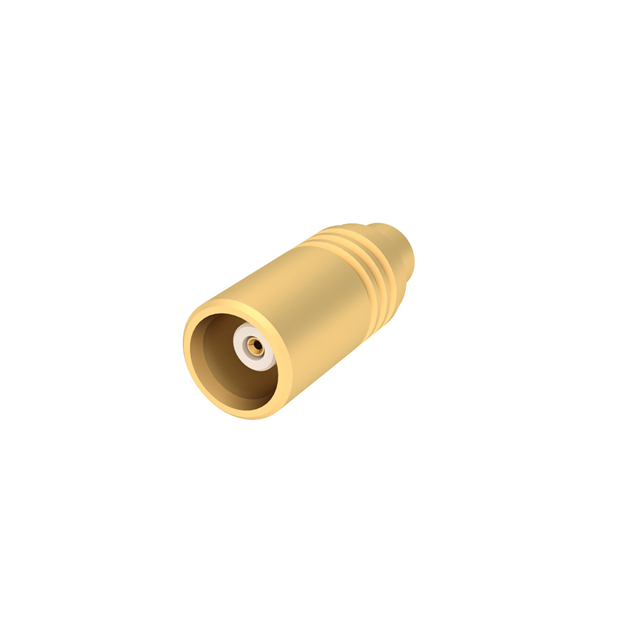

R113223000

Active

Radiall USA, Inc.

MCX / STRAIGHT JACK SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX / STRAIGHT JACK SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R113223000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Cable Group	Fastening Type	Center Contact Plating	Shield Termination	Contact Termination	Body Material	Impedance	Connector Style	Body Finish	Number of Ports	Housing Color	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Mounting Type	Center Contact Material	Mating Cycles	Connector Type	Voltage Rating
Radiall USA, Inc. R113223000	RG-405 (.085" Semi Rigid)	Snap-On	Gold	Solder	Solder	Brass	50 Ohms	MCX	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	115 °C	-55 °C	6000 MHz	Free Hanging (In-Line)	Beryllium Copper	500	Female Socket Jack	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
