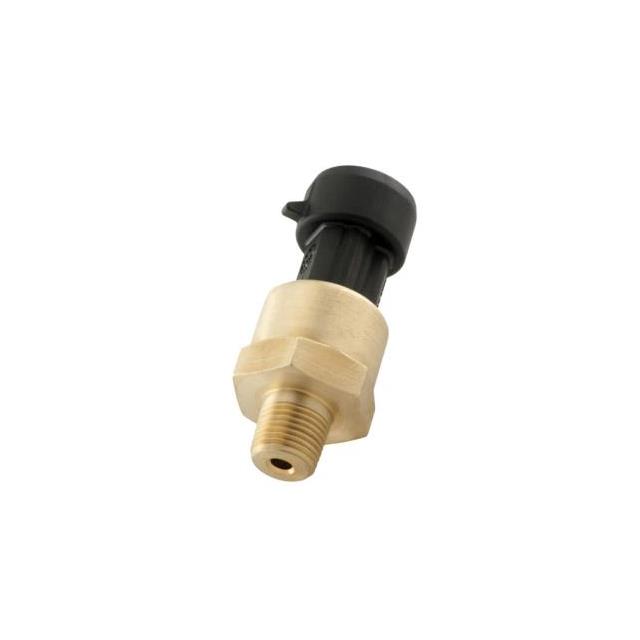

P500-15-A-E1A
ObsoleteSensata Technologies
SENSOR PRES ABS 0-15PSI 1/4"NPT
Deep-Dive with AI
Search across all available documentation for this part.
P500-15-A-E1A
ObsoleteSensata Technologies
SENSOR PRES ABS 0-15PSI 1/4"NPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P500-15-A-E1A |
|---|---|
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 1000 PSI |
| Maximum Pressure [Max] | 6894.76 kPa |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Cylinder |
| Port Size | NPT, Female |
| Port Size | 0.25 " |
| Port Size | 6.35 mm |
| Port Style | Threaded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 123.46 | |
Description
General part information
P500-15 Series
SENSOR PRES ABS 0-15PSI 1/4"NPT
Documents
Technical documentation and resources
No documents available
