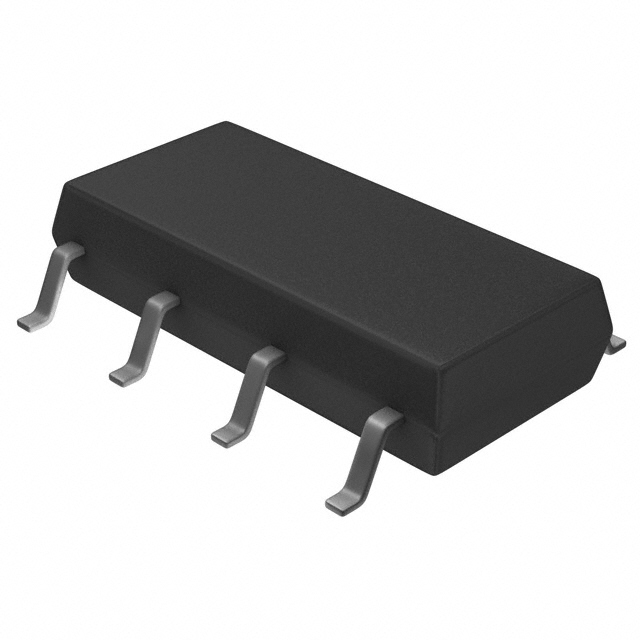

AQW214SZ

Active

Panasonic Electric Works

SSR RELAY SPST-NO 80MA 0-400V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

AQW214SZ

Active

Panasonic Electric Works

SSR RELAY SPST-NO 80MA 0-400V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AQW214SZ

Approval Agency	VDE, UR
Circuit	SPST-NO (1 Form A) x 2
Load Current	80 mA
Mounting Type	Surface Mount
On-State Resistance (Max) [Max]	50 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	DC, AC
Package / Case	8-SOP
Package / Case [custom]	4.4 mm
Package / Case [x]	0.173 in
Supplier Device Package	8-SOP
Termination Style	Gull Wing
Voltage - Input	1.14 VDC

AQW214 Series

Part	Load Current	Mounting Type	Circuit	Voltage - Input	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Supplier Device Package	Output Type	Termination Style	Package / Case	Package / Case	Package / Case	Package / Case [custom]	Package / Case [x]
Panasonic Electric Works AQW214EHAX	100 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	35 Ohm	8-SMD	AC DC	Gull Wing	7.62 mm	0.3 in	8-SMD
Panasonic Electric Works AQW214AX	100 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-SMD	AC DC	Gull Wing	7.62 mm	0.3 in	8-SMD
Panasonic Electric Works AQW214EA	100 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-SMD	AC DC	Gull Wing	7.62 mm	0.3 in	8-SMD
Panasonic Electric Works AQW214SZ	80 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-SOP	AC DC	Gull Wing			8-SOP	4.4 mm	0.173 in
Panasonic Electric Works AQW214SX	80 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-SOP	AC DC	Gull Wing			8-SOP	4.4 mm	0.173 in
Panasonic Electric Works AQW214E	100 mA	Through Hole	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-DIP	AC DC	PC Pin	7.62 mm	0.3 in	8-DIP
Panasonic Electric Works AQW214AZ	100 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-SMD	AC DC	Gull Wing	7.62 mm	0.3 in	8-SMD
Panasonic Electric Works AQW214EAZ	100 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	50 Ohm	8-SMD	AC DC	Gull Wing	7.62 mm	0.3 in	8-SMD
Panasonic Electric Works AQW214EH	100 mA	Through Hole	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	35 Ohm	8-DIP	AC DC	PC Pin	7.62 mm	0.3 in	8-DIP
Panasonic Electric Works AQW214EHAZ	100 mA	Surface Mount	SPST-NO (1 Form A) x 2	1.14 VDC	UR VDE	85 °C	-40 °C	35 Ohm	8-SMD	AC DC	Gull Wing	7.62 mm	0.3 in	8-SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.75
		10	$ 4.45
		25	$ 3.96
		50	$ 3.76
		100	$ 3.56
		250	$ 3.17
		500	$ 2.97
	Digi-Reel®	1	$ 4.75
		10	$ 4.45
		25	$ 3.96
		50	$ 3.76
		100	$ 3.56
		250	$ 3.17
		500	$ 2.97
	Tape & Reel (TR)	1000	$ 2.77
		3000	$ 2.72

Description

General part information

AQW214 Series

Solid State SPST-NO (1 Form A) x 2 8-SOP (0.173", 4.40mm Width)
