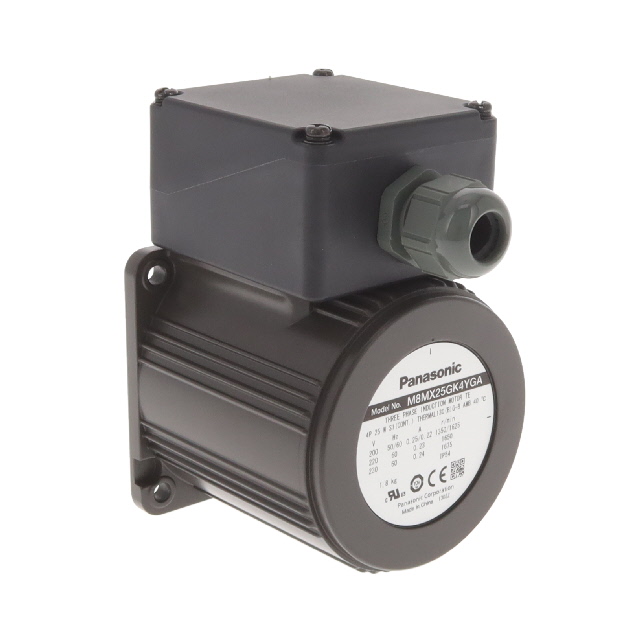

Specification	M8MX25GK4YGA

Approval Agency	CE, cULus, CCC
Function	Standard
Length - Shaft and Bearing	0.445 in
Mounting Hole Spacing	3.701 in
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-10 °C
Power - Rated	25 W
RPM	1550 RPM
Size / Dimension Length	3.15 in
Size / Dimension Shape	Square
Size / Dimension Width	3.15 in
Termination Style	Connector
Torque - Rated (mNm)	150 mNm
Torque - Rated (oz-in)	21.24 oz-in
Type	AC Motor
Voltage - Rated	220 VAC
Weight	3.3 lbs

M8MX25 Series

Part	Approval Agency	Power - Rated	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated	Length - Shaft and Bearing	Function	RPM	Type	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Mounting Hole Spacing	Torque - Rated (mNm)	Torque - Rated (oz-in)	Diameter - Shaft	Weight
Panasonic Industrial Automation Sales M8MX25G4Y	CCC CE cULus	25 W	Wire Leads	-10 °C	40 °C	200 VDC 220 VAC	0.445 in	Standard	1650 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	150 mNm	21.24 oz-in
Panasonic Industrial Automation Sales M8MX25G4YGA	CCC CE cULus	25 W	Wire Leads	-10 °C	40 °C	220 VAC	0.445 in	Standard	1675 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	140 mNm	19.83 oz-in
Panasonic Industrial Automation Sales M8MX25SK4YGA	CCC CE cULus	25 W	Connector	-10 °C	40 °C	220 VAC	1.26 in	Standard	1675 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	140 mNm	19.83 oz-in	0.315 in

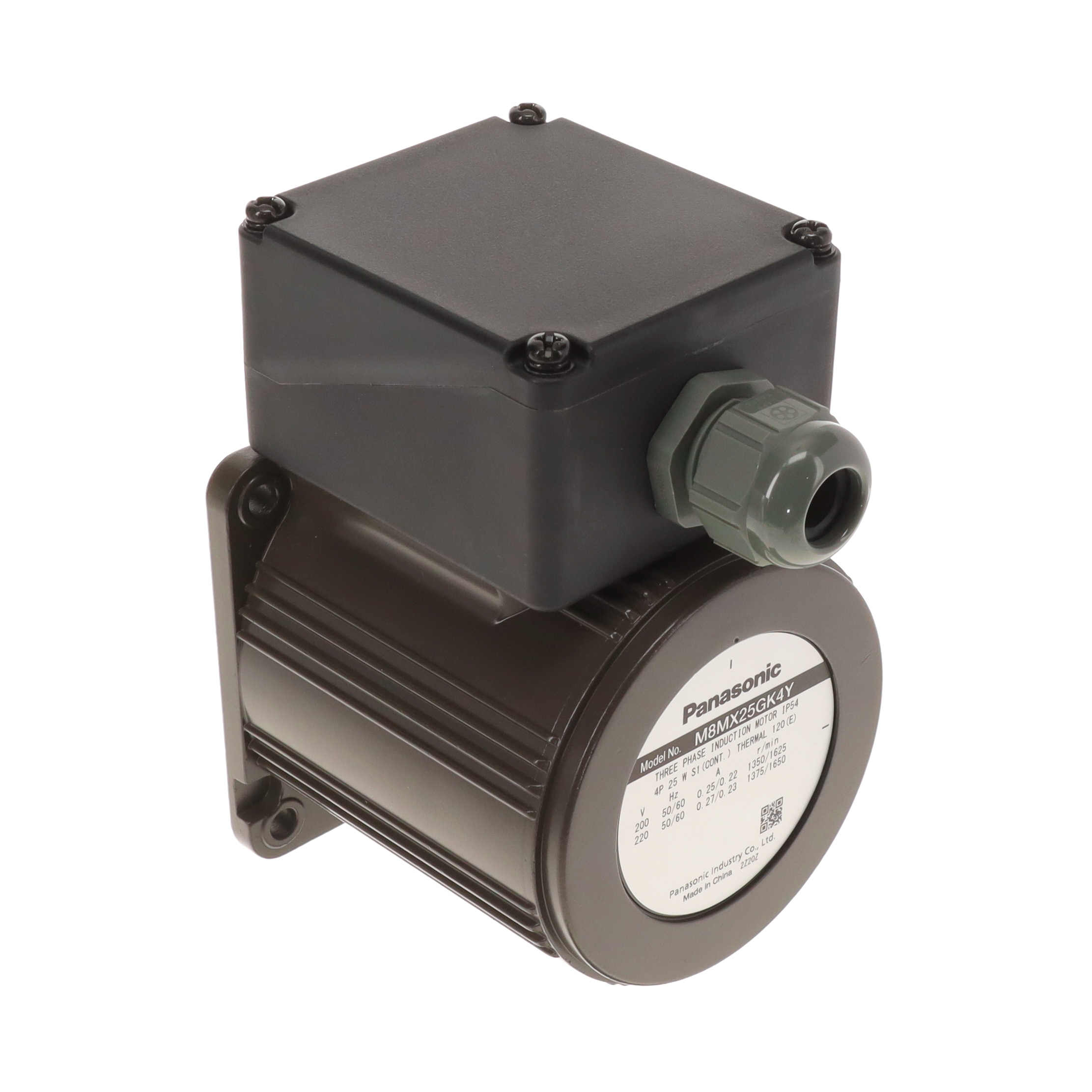

Panasonic Industrial Automation Sales M8MX25GK4Y	CCC CE cULus	25 W	Connector	-10 °C	40 °C	200 VDC 220 VAC	0.445 in	Standard	1650 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	150 mNm	21.24 oz-in
Panasonic Industrial Automation Sales M8MX25SK4CGA	CCC CE cULus	25 W	Connector	-10 °C	40 °C	380 VAC 400 V	1.26 in	Standard	1325 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	180 mNm	25.49 oz-in	0.315 in
Panasonic Industrial Automation Sales M8MX25GK4YGA	CCC CE cULus	25 W	Connector	-10 °C	40 °C	220 VAC	0.445 in	Standard	1550 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	150 mNm	21.24 oz-in		3.3 lbs
Panasonic Industrial Automation Sales M8MX25HK4Y	CCC CE cULus	25 W	Connector	-10 °C	40 °C	200 VDC 220 VAC	0.551 in	Standard	1650 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	150 mNm	21.24 oz-in
Panasonic Industrial Automation Sales M8MX25H4Y	CCC CE cULus	25 W	Wire Leads	-10 °C	40 °C	200 VDC 220 VAC	0.551 in	Standard	1650 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	150 mNm	21.24 oz-in
Panasonic Industrial Automation Sales M8MX25GB4Y	CCC CE cULus	25 W	Wire Leads	-10 °C	40 °C	200 VDC 220 VAC	0.445 in	Standard	1650 RPM	AC Motor	3.15 in	Square	3.15 in	3.701 in	150 mNm	21.24 oz-in
Panasonic Industrial Automation Sales M8MX25S4YS	CCC CE cULus	25 W	Wire Leads	-10 °C	40 °C	200 VDC 220 VAC	1.26 in	Standard		AC Motor	3.15 in	Square	3.15 in	3.701 in			0.315 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M8MX25GK4YGA | Datasheet
