SF1109-6005

Active

Amphenol SV Microwave

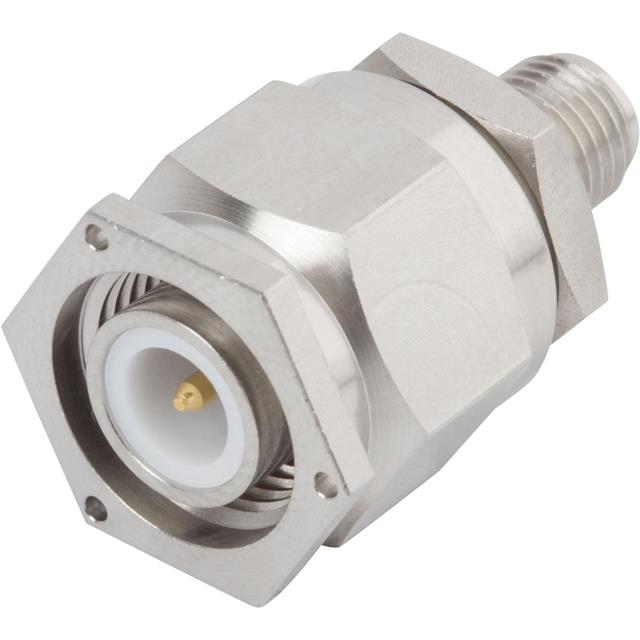

SMA FEMALE TO PTNC MALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA FEMALE TO PTNC MALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1109-6005

Adapter Series	SMA to PTNC
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	PTNC Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Adapter Type	Conversion Type	Frequency - Max [Max]	Adapter Series	Mating Cycles	Impedance	Center Contact Material	Mounting Type	Dielectric Material	Style	Convert From (Adapter End)	Center Contact Plating	Convert To (Adapter End)
Amphenol SV Microwave SF1109-6005	-65 ░C	165 °C	Stainless Steel	Plug to Jack	Between Series	18 GHz	SMA to PTNC	500	50 Ohms	Beryllium Copper	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Straight	PTNC Plug Male Pin	Gold	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PTNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
