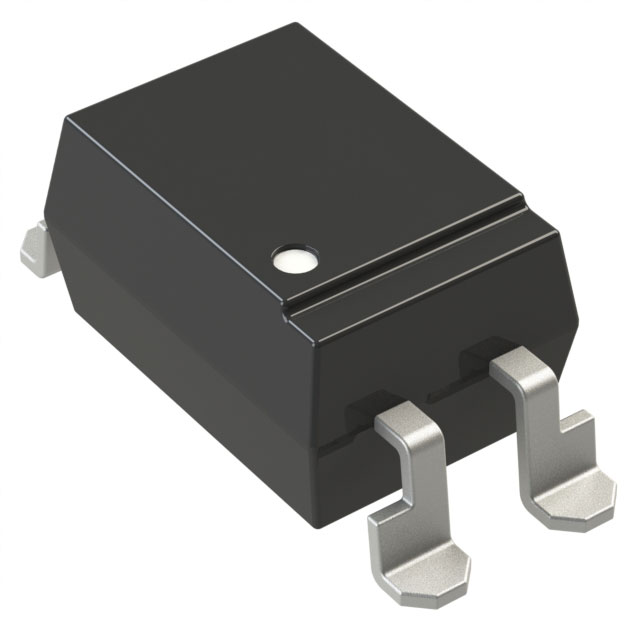

PC851XNNIP1H

Active

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS SMD

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PC851XNNIP1H

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [custom]	100 °C, -25 °C
Output Type	1.81 mOhm
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	4 µs
Rise / Fall Time (Typ) [custom]	5 µs
Supplier Device Package	4-SMD
Vce Saturation (Max) [Max]	300 mV
Voltage - Output (Max)	350 V

OPTOISOLATOR 5KV TRANS SMD

Part	Voltage - Output (Max)	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Output Type	Package / Case	Input Type	Supplier Device Package	Vce Saturation (Max) [Max]	Operating Temperature [custom]	Number of Channels	Current - DC Forward (If) (Max)
SHARP/Socle Technology PC851XNNIP1H	350 V	50 mA	4 µs	5 µs	Surface Mount	1.81 mOhm	4-SMD, Gull Wing	DC	4-SMD	300 mV	-25 °C, 100 °C	1	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 1 Channel 4-SMD
