Specification	GLF72111

Current - Output (Max)	3 A
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	High Side
Output Type	P-Channel

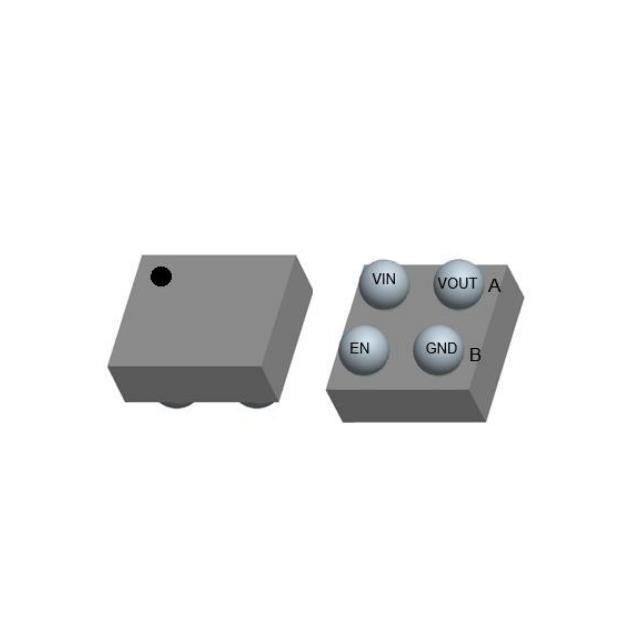

Package / Case	4-UFBGA, WLCSP
Package Length	0.97 mm
Package Name	4-WLCSP
Package Width	0.97 mm
Rds On (Typ)	29 mOhm
Switch Type	Load Switch
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	1.5 V

GLF72111 Series

Part	Rds On (Typ)	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Configuration	Switch Type	Package / Case	Package Name	Package Length	Package Width	Mounting Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Current - Output (Max)
GLF Integrated Power GLF72111	29 mOhm	P-Channel	85 °C	-40 °C	High Side	Load Switch	4-UFBGA WLCSP	4-WLCSP	0.97 mm	0.97 mm	Surface Mount	1.5 V	5.5 V	3 A
