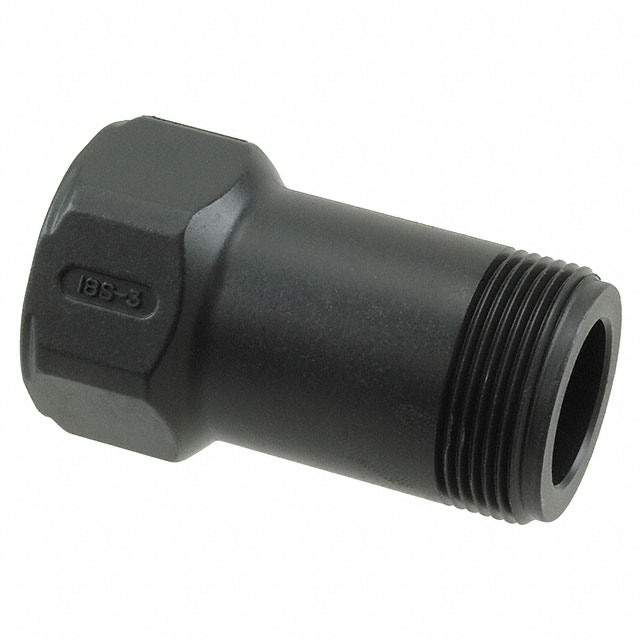

JL05-18EB1A-R

Active

JAE Electronics

CONN BACKSHELL SZ18 BLACK 1-20

Search across all available documentation for this part.

Active

JAE Electronics

CONN BACKSHELL SZ18 BLACK 1-20

Technical Specifications

Parameters and characteristics for this part

Specification	JL05-18EB1A-R

Cable Exit	180 °
Cable Opening [custom]	0.921 in
Cable Opening [custom]	23.4 mm
Color	Black
Diameter - Outside [diameter]	1.26 in
Diameter - Outside [diameter]	32 mm
For Use With/Related Products	JL05 Series Connectors
Includes	1 Set Screw, 1 Backshell
Material	Aluminum Alloy
Plating	Zinc
Shell Size - Insert	18
Thread Size	1-20 UNEF-2B
Type	Backshell

Part	Includes	Plating	Type	Color	Cable Exit	For Use With/Related Products	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Thread Size	Ingress Protection	Features
JAE Electronics JL05-18EB1A-R	1 Backshell 1 Set Screw	Zinc	Backshell	Black	180 °	JL05 Series Connectors	Aluminum Alloy	1.26 in	32 mm	0.921 in	23.4 mm	18	1-20 UNEF-2B
JAE Electronics JL05-18EB3B-(11)-RK
JAE Electronics JL05-18EB3B-(11)-R	1 Backshell 1 Compression Nut 1 O-Ring 1 Sleeve 2 Bushings 2 Screws	Zinc	Backshell	Black	180 °	JL05 Series Connectors	Aluminum Alloy	1.26 in	32 mm	0.433 in	11 mm	18	1-20 UNEF	Waterproof	Bushing Sleeve
