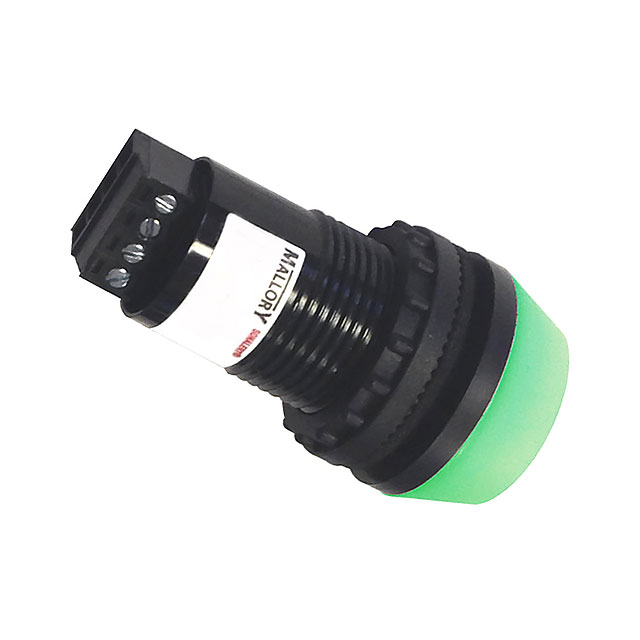

ZT028LDIC1G

Active

Mallory Sonalert Products Inc.

BUZZER PIEZO 24V 30.74MM PNL MNT

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

BUZZER PIEZO 24V 30.74MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	ZT028LDIC1G

Approval Agency	UL, cUL
Current - Supply	50 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	3.9 kHz
Height - Seated (Max) [Max] [z]	2.234 in
Height - Seated (Max) [Max] [z]	56.75 mm
Ingress Protection	12, NEMA 3R, 4X
Input Type	DC
Operating Mode	Visual Indicator, Single Tone
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Size / Dimension [diameter]	1.21 "
Size / Dimension [diameter]	30.74 mm
Sound Pressure Level (SPL)	85 dB
Technology	Piezo
Termination	Terminal Block
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	20 VDC

BUZZER PIEZO 24V 30.74MM PNL MNT

Part	Port Location	Approval Agency	Operating Mode	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Ingress Protection	Driver Circuitry	Sound Pressure Level (SPL)	Technology	Frequency	Input Type
Mallory Sonalert Products Inc. ZT028LDIC1G	Top	cUL, UL	Single Tone, Visual Indicator	1.21 "	30.74 mm	Terminal Block	20 VDC	28 VDC	24 VDC	2.234 in	56.75 mm	65 °C	-30 ░C	50 mA	12, 4X, NEMA 3R	Indicator, Internally Driven	85 dB	Piezo	3.9 kHz	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 94.94

General part information

Buzzers Indicator, Internally Driven Piezo 24 V 50mA 3.9kHz 85dB @ 20V, 61cm Panel Mount Terminal Block
