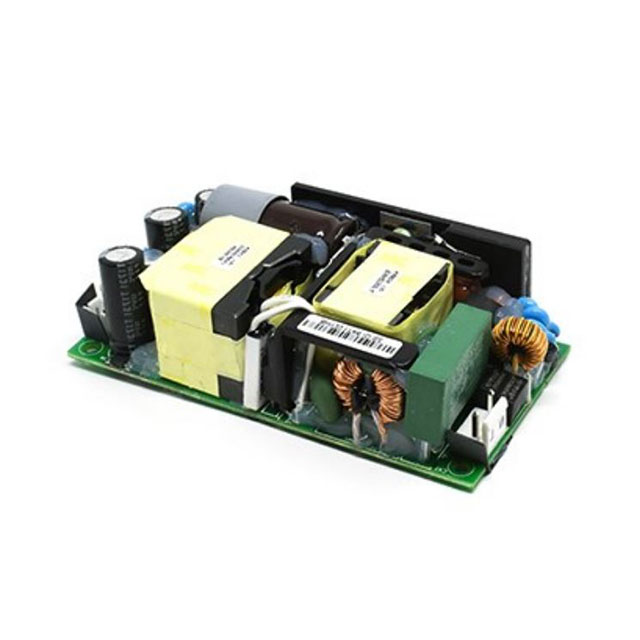

PDAM240-14A-H

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 24V 160W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 24V 160W

Technical Specifications

Parameters and characteristics for this part

Specification	PDAM240-14A-H

Applications	ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output 1	10 A
Efficiency	93 %
Features	Standby Output, Universal Input, PFC, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	160 W
Power (Watts)	240 W
Size / Dimension [x]	104.1 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.05 in
Size / Dimension [y]	52.1 mm
Size / Dimension [z]	1.09 "
Size / Dimension [z]	27.6 mm
Standard Number	60950-1, 60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

AC/DC CONVERTER 24V 160W

Part	Approval Agency	Type	Mounting Type	Power (Watts)	Power (Watts)	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Minimum Load Required	Applications	Voltage - Output 1	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Features
TT Electronics/Power Partners Inc. PDAM240-14A-H	CB, CE, cURus	Open Frame	Chassis Mount	160 W	240 W	60601-1, 60950-1, 62368-1	1.09 "	104.1 mm	2.05 in	52.1 mm	27.6 mm	4.1 "	4000 V	70 °C	-30 °C	10 A		ITE (Commercial), Medical	24 V	93 %	264 VAC, 370 VDC	90 VAC, 120 VDC	1	DC Input Capable, PFC, Standby Output, Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.42

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC, 120 ~ 370 VDC Input
