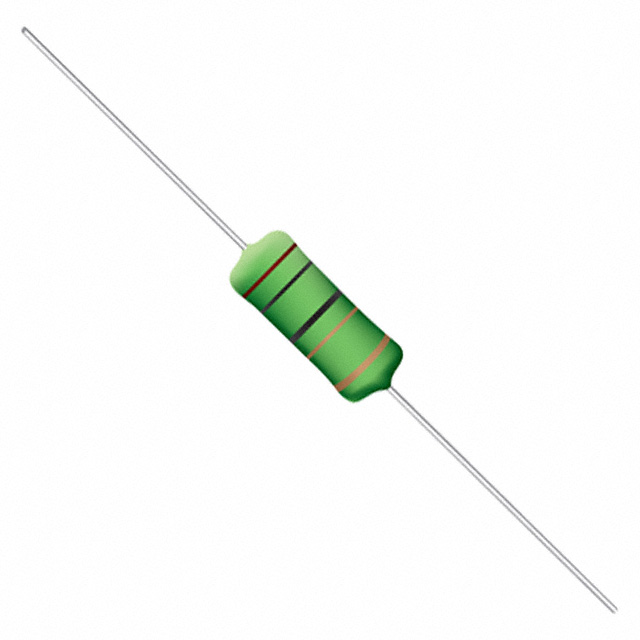

FW30A47R0JA

Active

Bourns Inc.

RESFUS AX WW 47R 3W 5% /AMMO PACK

Search across all available documentation for this part.

Active

Bourns Inc.

RESFUS AX WW 47R 3W 5% /AMMO PACK

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Resistance	Temperature Coefficient	Tolerance	Number of Terminations	Package / Case	Features	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Composition	Supplier Device Package
Bourns Inc. FW30A47R0JA	155 °C	-55 °C	3 W	47 Ohms	200 ppm/°C	5 %	2	Axial	Fusible Safety	6.5 mm	16 mm	0.63 "	0.256 in	Wirewound	Axial
Bourns Inc. FW30A1000JA	155 °C	-55 °C	3 W	100 Ohms	200 ppm/°C	5 %	2	Axial	Fusible Safety	6.5 mm	16 mm	0.63 "	0.256 in	Wirewound	Axial
Bourns Inc. FW30A22R0JA	155 °C	-55 °C	3 W	22 Ohms	200 ppm/°C	5 %	2	Axial	Fusible Safety	6.5 mm	16 mm	0.63 "	0.256 in	Wirewound	Axial
Bourns Inc. FW30A8R20JA	155 °C	-55 °C	3 W		200 ppm/°C	5 %	2	Axial	Fusible Safety	6.5 mm	16 mm	0.63 "	0.256 in	Wirewound	Axial
Bourns Inc. FW30A33R0JA	155 °C	-55 °C	3 W	33 Ohms	200 ppm/°C	5 %	2	Axial	Fusible Safety	6.5 mm	16 mm	0.63 "	0.256 in	Wirewound	Axial
Bourns Inc. FW30A5R60JA	155 °C	-55 °C	3 W	5.6 Ohms	200 ppm/°C	5 %	2	Axial	Fusible Safety	6.5 mm	16 mm	0.63 "	0.256 in	Wirewound	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 Ohms ±5% 3W Through Hole Resistor Axial Fusible, Safety Wirewound
