Q-1W0720008006i

Active

Amphenol Custom Cable

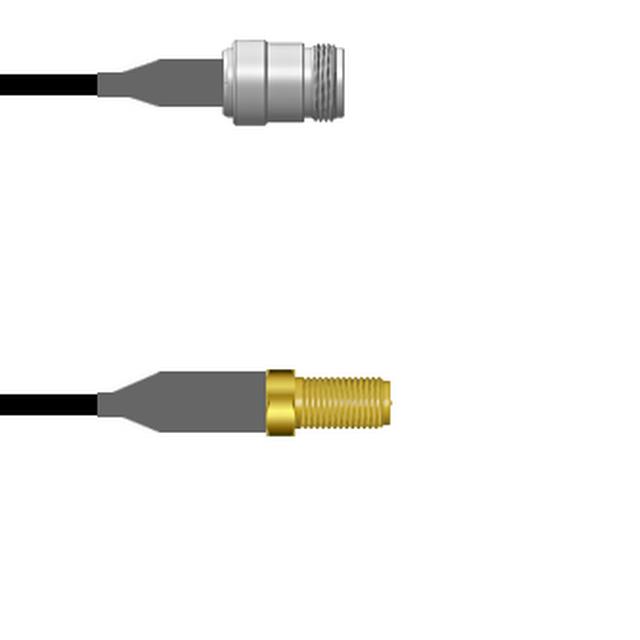

CBL ASSY RPSMA-NTYPE JCK-JCK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W0720008006i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JCK-JCK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W0720008006i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-1W0720 Series

Part	Features	1st Connector	2nd Contact Gender	Length	Length	Length	1st Contact Gender	Color	Cable Type	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type	Style	Overall Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-1W0720008060i	Shielded	RP-SMA Jack	Female	5 ft	1.5 m	5 '	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W07200082.5M	Shielded	RP-SMA Jack	Female	8.2 '	2.5 m	98.4 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W0720008.75M	Shielded	RP-SMA Jack	Female		750 mm	29.53 "	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W0720008018i	Shielded	RP-SMA Jack	Female				Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1W0720008006i	Shielded	RP-SMA Jack	Female		152.4 mm	6 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W07200081.5M	Shielded	RP-SMA Jack	Female	4.9 ft	1.5 m	59.1 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W0720008108i	Shielded	RP-SMA Jack	Female	9 ft	2.7 m	108 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W0720008036i	Shielded	RP-SMA Jack	Female		91.44 cm	36 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W0720008048i	Shielded	RP-SMA Jack	Female	4 ft	1200 mm	48 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms
Amphenol Custom Cable Q-1W0720008002M	Shielded	RP-SMA Jack	Female	6.6 ft	2 m	78.7 in	Male	Black	RG-58	11 GHz	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA to N-Type	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 54.03
		25	$ 52.99
		50	$ 51.94
		100	$ 50.90
		250	$ 49.85

Description

General part information

Q-1W0720 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-58 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
