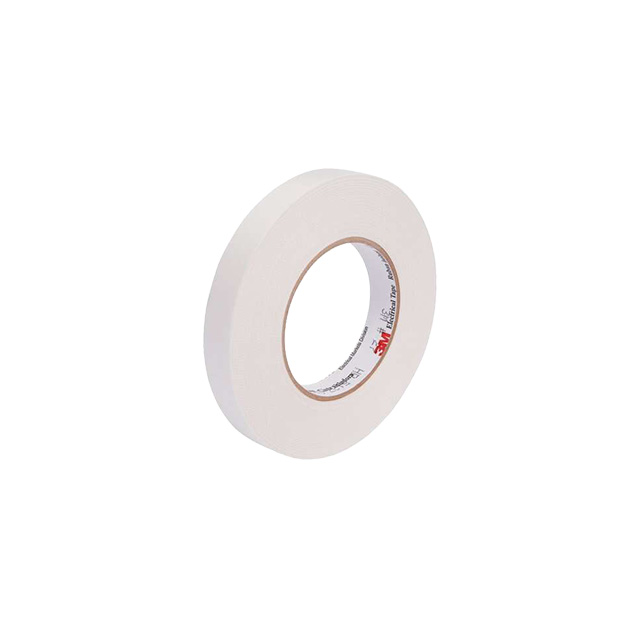

27-1.5-60

Active

3M (TC)

TAPE ELEC/GLS CLOTH 1 1/2"X60YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

27-1.5-60

Active

3M (TC)

TAPE ELEC/GLS CLOTH 1 1/2"X60YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	27-1.5-60

Adhesive	Rubber
Backing, Carrier	Glass Cloth
Color	White
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical, Glass Cloth
Temperature Range	130 °C
Temperature Range	266 °F
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Width	1.5 "
Width	38.1 mm
Width	1 1/2

3M 27 Series

Part	Color	Backing, Carrier	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Tape Type	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Shelf Life	Width	Width	Width	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Length	Length	Length	Width [x]	Width [x]	Temperature Range	Temperature Range	Width [y]	Width [y]
3M (TC) 3M 27 1.75" X 60YD	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months	44.45 mm	1.75 in	1 3/4	0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft
3M (TC) 3M 27 2.75" X 60YD	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months	69.85 mm	2.75 in		0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft
3M (TC) 27-1-60	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months				0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft	25.4 mm	1 in
3M (TC) 3M 27 4.72" X 60YD	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months	120 mm	4.72 in		0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft
3M (TC) 27-1.5-60	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical Glass Cloth					60 Months	38.1 mm	1.5 "	1 1/2	0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft			130 °C	266 °F
3M (TC) 3M 27 11" X 60YD	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months				0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft					279.4 mm	11 in
3M (TC) 27-2-60	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months				0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft					50.8 mm	2 "
3M (TC) 3M 27 0.71" X 60YD	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months				0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft	18 mm	0.71 in
3M (TC) 27-3-60	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months				0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft	76.2 mm	3 in
3M (TC) 27-2.25-60	White	Glass Cloth	27 °C 80 °F	10 °C	Date of Manufacture	Electrical	0 °C	150 °C	0 °C	150 °C	60 Months				0.005 "	5 mils	0.127 mm	Rubber	2 mils	0.051 mm	0.002 "	60 yds	55 m	180 ft					57.15 mm	2.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 91.45
		10	$ 85.73
		25	$ 80.02
		50	$ 76.02

Description

General part information

3M 27 Series

Electrical, Glass Cloth Tape Rubber Adhesive White 1.50" (38.10mm) 1 1/2" X 180' (55.0m) 60 yds
