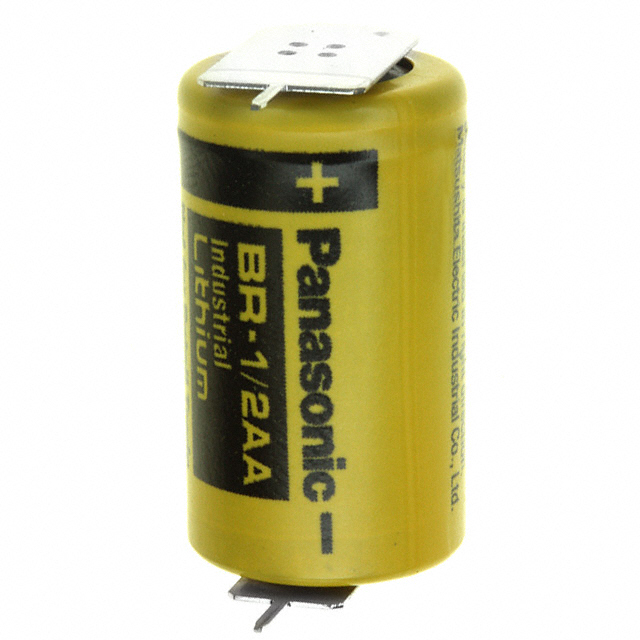

BR-1/2AAE5PN

Active

Panasonic - BSG

BATTERY LITHIUM 3V 1/2 AA

Search across all available documentation for this part.

Active

Panasonic - BSG

BATTERY LITHIUM 3V 1/2 AA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR-1/2AAE5PN	BR-1/2 Series

Battery Cell Size	1/2AA	1/2AA
Battery Chemistry	Lithium Poly-Carbon Monofluoride	Lithium Poly-Carbon Monofluoride
Capacity	1 Ah	1 Ah
Discharge Rate	2.5 mA	2.5 mA
Shipping Info	Due to restrictions, only ground shipment is allowed.	Due to restrictions, only ground shipment is allowed.
Size / Dimension [diameter]	14.5 mm	14.5 mm
Size / Dimension [diameter]	0.57 in	0.57 in
Size / Dimension [z]	0.99 "	0.99 "
Size / Dimension [z]	25.2 mm	25.2 mm
Termination Style	PC Pin (Horizontal Mount)	PC Pin (Horizontal Mount)
Voltage - Rated	3 VDC	3 VDC
Weight	7.94 g	7.94 g

BATTERY LITHIUM 3V 1/2 AA

Part	Weight	Voltage - Rated	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Battery Cell Size	Shipping Info	Battery Chemistry	Capacity	Discharge Rate	Termination Style
Panasonic - BSG BR-1/2AAC2PN	7.94 g	3 VDC	0.99 "	14.5 mm	25.2 mm	0.57 in	1/2AA	Due to restrictions, only ground shipment is allowed.	Lithium Poly-Carbon Monofluoride	1 Ah	2.5 mA
Panasonic - BSG BR-1/2AAE2PN	7.94 g	3 VDC	0.99 "	14.5 mm	25.2 mm	0.57 in	1/2AA	Due to restrictions, only ground shipment is allowed.	Lithium Poly-Carbon Monofluoride	1 Ah	2.5 mA	PC Pin (Horizontal Mount)
Panasonic - BSG BR-1/2AAE5PN	7.94 g	3 VDC	0.99 "	14.5 mm	25.2 mm	0.57 in	1/2AA	Due to restrictions, only ground shipment is allowed.	Lithium Poly-Carbon Monofluoride	1 Ah	2.5 mA	PC Pin (Horizontal Mount)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/2AA Lithium Poly-Carbon Monofluoride 3 V Battery Non-Rechargeable (Primary)

Technical documentation and resources
