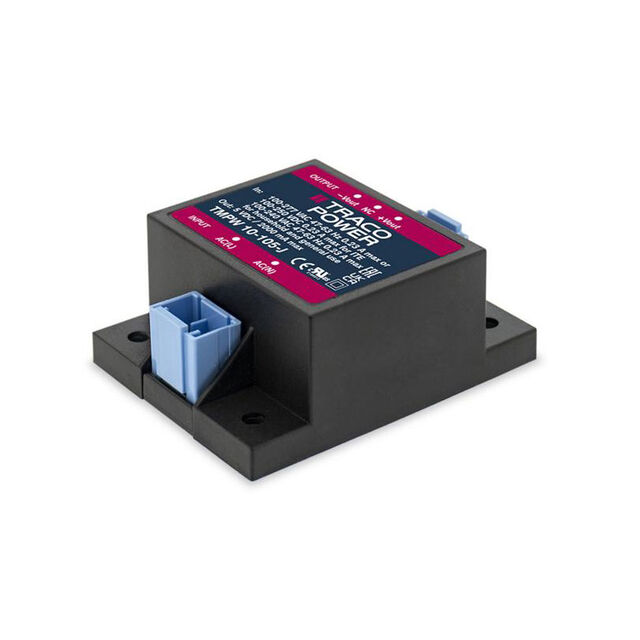

Specification	TMPW 10-115-J

Applications	ITE (Commercial), Household Appliances
Approval Agency	CB, cURus
Current - Output 1	667 mA
Efficiency	86 %
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	10 W
Size / Dimension Height	0.91 in
Size / Dimension Length	2.17 in
Size / Dimension Width	1.7 in
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input (AC) Maximum	305 VAC
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	250 V
Voltage - Input (DC) Minimum	100 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	15 V

TMPW 10 Series

Part	Minimum Load Required	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Standard Number	Current - Output 1	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Power (Watts)	Type	Applications	Efficiency	Number of Outputs	Voltage - Isolation	Approval Agency	Voltage - Input (DC) Maximum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Output 1	Current - Output (Max)	Package / Case
Traco Power TMPW 10-115-J	No	Chassis Mount	70 °C	-40 °C	60335-1 62368-1	667 mA	2.17 in	1.7 in	0.91 in	10 W	Enclosed	Household Appliances ITE (Commercial)	86 %	1	4000 Vpk	CB cURus	250 V	305 VAC	90 V	100 V	15 V
Traco Power TMPW 10-112		Through Hole	70 °C	-40 °C			1.46 in	1.08 in	0.79 in	10 W	Enclosed	Household Appliances ITE (Commercial)	85 %	1		CB cURus	250 V	305 VAC	90 V	100 V	12 V	833 mA	5-DIP Module
Traco Power TMPW 10-124-J	No	Chassis Mount	70 °C	-40 °C	60335-1 62368-1	417 mA	2.17 in	1.7 in	0.91 in	10 W	Enclosed	Household Appliances ITE (Commercial)	86 %	1	4000 Vpk	CB cURus	250 V	305 VAC	90 V	100 V	24 V
Traco Power TMPW 10-115		Through Hole	70 °C	-40 °C			1.46 in	1.08 in	0.79 in	10 W	Enclosed	Household Appliances ITE (Commercial)	86 %	1		CB cURus	250 V	305 VAC	90 V	100 V	15 V	667 mA	5-DIP Module
