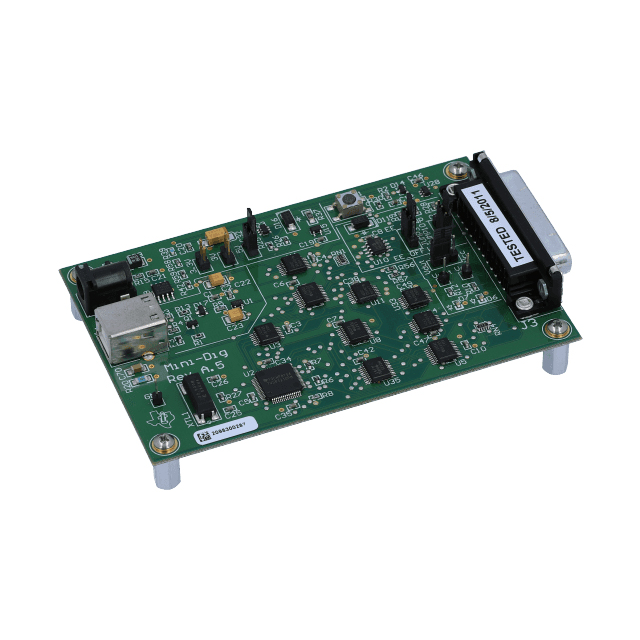

BUF08821EVM-USB
ActiveEVAL MODULE USB FOR BUF08821
Deep-Dive with AI
Search across all available documentation for this part.
BUF08821EVM-USB
ActiveEVAL MODULE USB FOR BUF08821
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BUF08821EVM-USB | BUF08821 Series |
|---|---|---|
| Current - Output / Channel | - | 30 mA |
| Current - Supply | - | 4.6 mA |
| Embedded | False | False |
| Function | Amplifier, Single | Amplifier, Single |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 8 |
| Output Type | - | Rail-to-Rail |
| Package / Case | - | 0.173 in |
| Package / Case | - | 20-PowerTSSOP |
| Package / Case | - | 4.4 mm |
| Primary Attributes | One Programmable VCOM Channel, 8 Programmable Gamma Channels | One Programmable VCOM Channel, 8 Programmable Gamma Channels |
| Supplied Contents | Board(s), Cable(s) | Board(s), Cable(s) |
| Supplier Device Package | - | 20-HTSSOP |
| Type | Video | Video |
| Utilized IC / Part | BUF08821 | BUF08821 |
| Voltage - Supply, Single/Dual (±) | - | 20 V |
| Voltage - Supply, Single/Dual (±) | - | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
BUF08821 Series
8-CH Gamma-Voltage Generator and Vcom Calibrator with Integrated Two-Bank Memory
| Part | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Output Type | Mounting Type | Current - Supply | Current - Output / Channel | Supplier Device Package | Number of Circuits | Package / Case [custom] | Package / Case | Package / Case [custom] | Utilized IC / Part | Primary Attributes | Function | Type | Supplied Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BUF08821BIPWPR | 20 V | 9 V | Rail-to-Rail | Surface Mount | 4.6 mA | 30 mA | 20-HTSSOP | 8 | 0.173 in | 20-PowerTSSOP | 4.4 mm | ||||||
Texas Instruments BUF08821AIPWPR | 20 V | 9 V | Rail-to-Rail | Surface Mount | 4.6 mA | 30 mA | 20-HTSSOP | 8 | 0.173 in | 20-PowerTSSOP | 4.4 mm | ||||||
Texas Instruments BUF08821EVM-USB | BUF08821 | 8 Programmable Gamma Channels, One Programmable VCOM Channel | Amplifier, Single | Video | Board(s), Cable(s) |
Description
General part information
BUF08821 Series
The BUF08821 offers eight programmable gamma channels plus one programmable VCOMchannel.
The final gamma and VCOMvalues can be stored in the on-chip, nonvolatile memory. To allow for programming errors or liquid crystal display (LCD) panel rework, the BUF08821 supports up to 16 write operations to the on-chip memory.
The BUF08821 has two separate memory banks, allowing simultaneous storage of two different gamma curves to facilitate switching between gamma curves.
Documents
Technical documentation and resources
