054332 Series

Part	Insulation Material	Note	Number of Positions	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Connector Type	Row Spacing	Fastening Type	Features	Pitch	Color	Contact Termination	Mounting Type
Molex 0543321200	Polycarbonate (PC) Polyester	Contacts Not Included	12	4	-40 °C	105 °C	Female Socket	Plug	0.118 in	Push-Pull	Assembly Kit	0.118 in	Gray	Crimp	Free Hanging (In-Line)
Molex 0543322000	Polycarbonate (PC) Polyester	Contacts Not Included	20	5	-40 °C	105 °C	Female Socket	Plug	0.118 in	Push-Pull	Assembly Kit	0.118 in	Gray	Crimp	Free Hanging (In-Line)
Molex 0543325002	Polyester	Contacts Not Included	50	10	-40 °C	105 °C	Female Socket	Plug	0.118 in	Push-Pull	Assembly Kit	0.118 in	Gray	Crimp	Free Hanging (In-Line)
Molex 0543323071	Polyester	Contacts Not Included	30	5	-40 °C	105 °C	Female Socket	Plug	0.118 in	Push-Pull	Assembly Kit	0.118 in	Gray	Crimp	Free Hanging (In-Line)

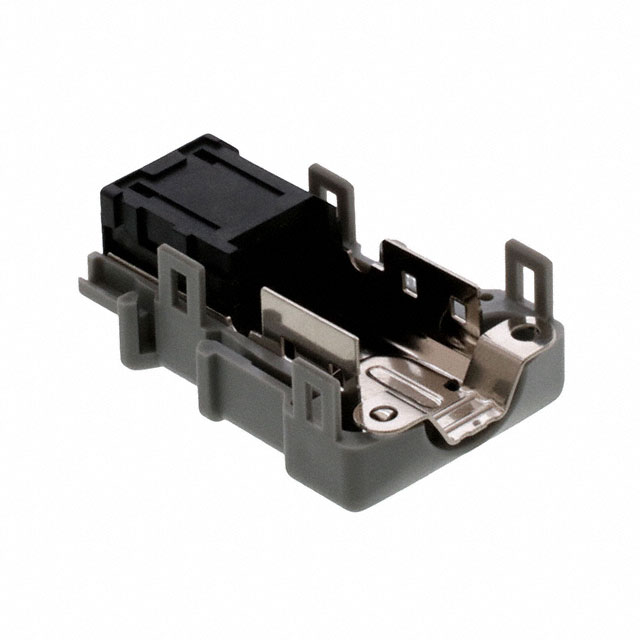

Molex 0543321270	Polyester	Contacts Not Included	12	4	-40 °C	105 °C	Female Socket	Plug	0.118 in	Push-Pull	Assembly Kit	0.118 in	Gray	Crimp	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
