PR20C03VBDN

Active

METZ CONNECT USA Inc.

CONN HEADER VERT 6POS 2MM

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CONN HEADER VERT 6POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	PR20C03VBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.7 mm
Overall Contact Length	0.343 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

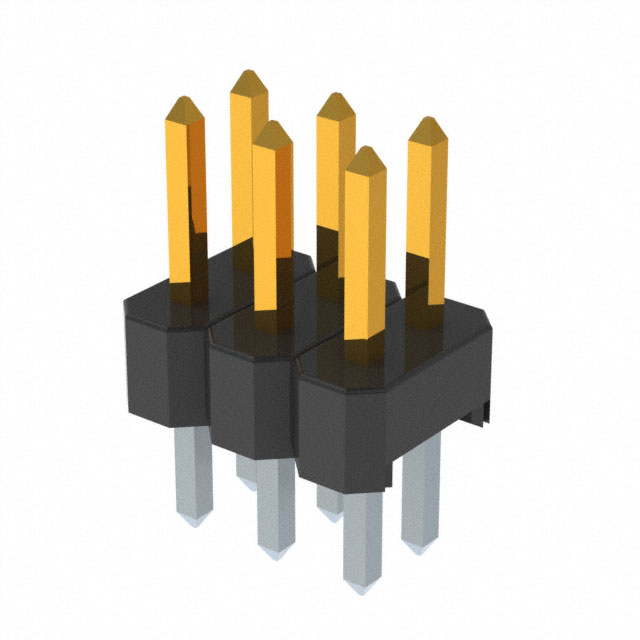

CONN HEADER VERT 6POS 2MM

Part	Overall Contact Length	Overall Contact Length	Connector Type	Fastening Type	Contact Type	Termination	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Insulation Material	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Material	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Mounting Type	Contact Shape	Contact Finish Thickness - Mating
METZ CONNECT USA Inc. PR20C03VBDN	8.7 mm	0.343 in	Header	Push-Pull	Male Pin	Solder	Black	0.079 in	2 mm	0.079 in	2 mm	2	Gold	0.11 in	2.79 mm	Polyethylene	0.154 in	3.91 mm	105 ░C	-55 °C	All	Copper Zinc	6	0.079 in	2 mm	Unshrouded	Through Hole	Square	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.079" (2.00mm)
