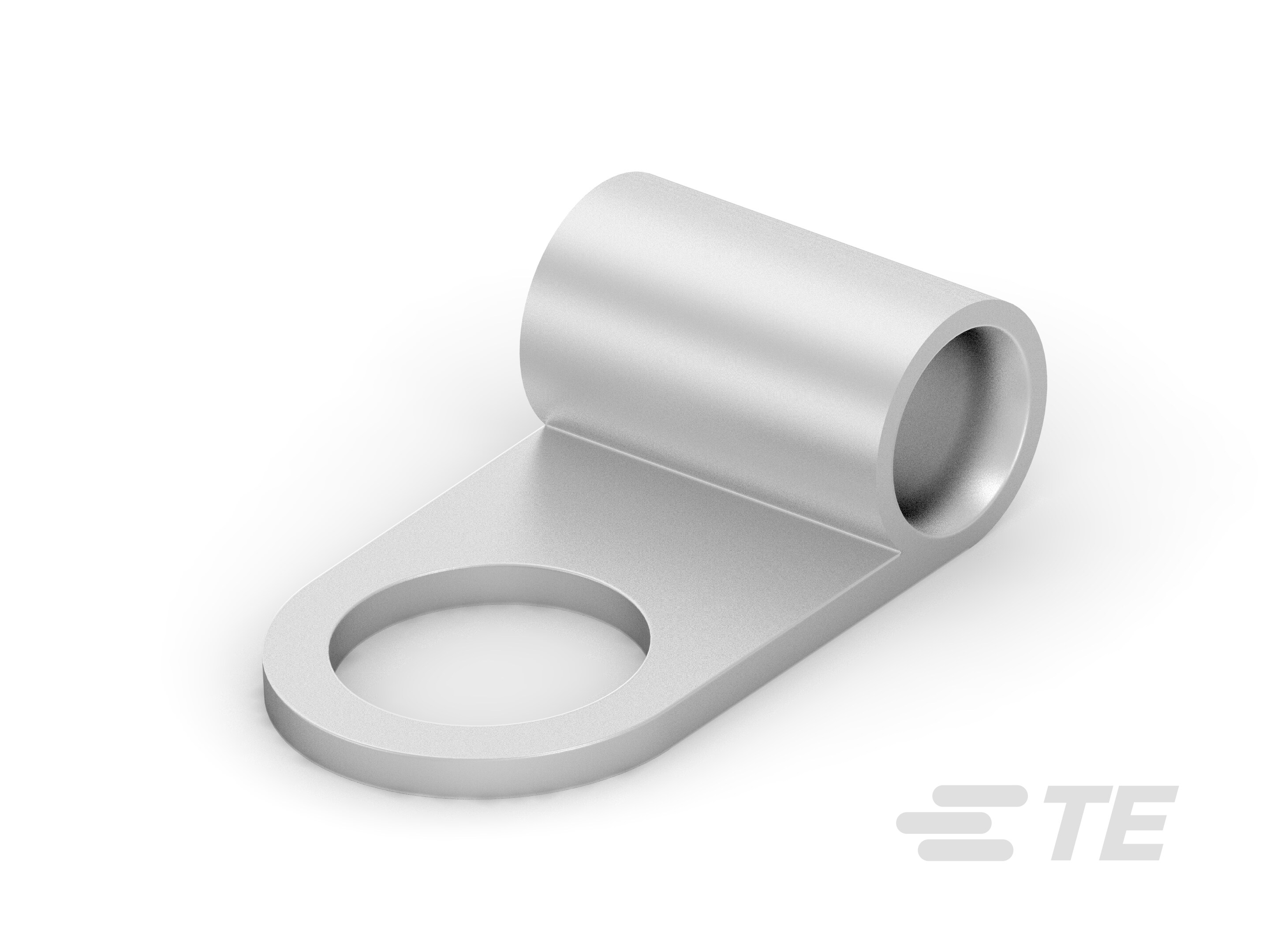

Specification	36272

Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Brazed Seam
Insulation	Non-Insulated
Length - Overall	0.702 in
Mounting Type	Right Angle, Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Flag, Crimb
Thickness	0.039 in
Width - Outer Edges	0.375 in
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

3627 Series

Part	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation	Width - Outer Edges	Termination	Stud/Tab Size	Mounting Type	Thickness	Terminal Type	Contact Material	Color	Contact Finish	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Insulation
TE Connectivity AMP Connectors 36273	0.17 in	0.115 in	Poly-Vinyl Chloride PVC	0.469 in	Crimp	14 Stud	Free Hanging (In-Line)	0.04 in	Circular	Copper	Green	Tin	0.983 in	20.5 AWG	16 AWG	Heavy Duty Serrated Termination	Insulated
TE Connectivity AMP Connectors 36272				0.375 in	Crimb Flag	0.25 Stud	Free Hanging (In-Line) Right Angle	0.039 in	Circular	Copper		Tin	0.702 in	12 AWG	10 AWG	Brazed Seam Serrated Termination	Non-Insulated
