1.15.210.001/0401

Active

RAFI USA

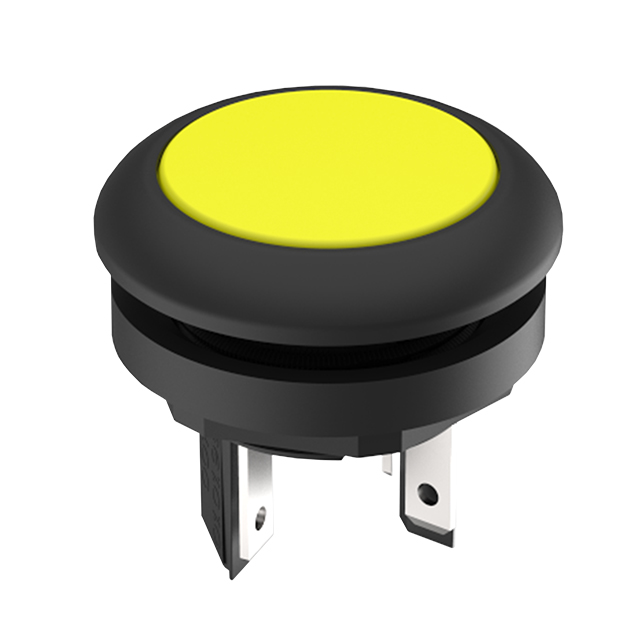

LUMOSTAST 16 PB NON-ILLUMINABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.15.210.001/0401

Active

RAFI USA

LUMOSTAST 16 PB NON-ILLUMINABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.83
		10	$ 14.52
		25	$ 14.49

Description

General part information

1.15.210 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15.210.001/0401	1.15.210 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round, Plunger for Cap
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Yellow	Green, Blue, Black, Yellow, Red, White
Current Rating (Amps)	100 mA	100 mA
Electrical Life	500000 Cycles	500000 Cycles
Illumination Type, Color	-	LED, Blue, Green, Yellow, Red, White
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Standard	Standard, Illuminated
Voltage Rating - DC	35 V	35 V

1.15.210 Series

LUMOSTAST 16 PB NON-ILLUMINABLE

Part	Panel Cutout Dimensions [diameter]	Termination Style	Mechanical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Actuator Marking	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Type	Color - Actuator/Cap	Ingress Protection	Illumination Type, Color
RAFI USA 1.15.210.001/0501	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Standard	Green	IP65 - Dust Tight, Water Resistant
RAFI USA 1.15.210.101/2601	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Illuminated, Standard	Blue	IP65 - Dust Tight, Water Resistant	Blue, LED
RAFI USA 1.15.210.001/0101	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Standard	Black	IP65 - Dust Tight, Water Resistant
RAFI USA 1.15.210.001/0601	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Standard	Blue	IP65 - Dust Tight, Water Resistant
RAFI USA 1.15.210.101/2501	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Illuminated, Standard	Green	IP65 - Dust Tight, Water Resistant	Green, LED
RAFI USA 1.15.210.101/2401	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Illuminated, Standard	Yellow	IP65 - Dust Tight, Water Resistant	LED, Yellow
RAFI USA 1.15.210.101/2301	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Illuminated, Standard	Red	IP65 - Dust Tight, Water Resistant	LED, Red
RAFI USA 1.15.210.001/0401	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Standard	Yellow	IP65 - Dust Tight, Water Resistant
RAFI USA 1.15.210.101/2201	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Illuminated, Standard	White	IP65 - Dust Tight, Water Resistant	LED, White
RAFI USA 1.15.210.001/0201	16.2 mm	Quick Connect - 0.110" (2.8mm)	500000 Cycles	Button, Flush, Round	70 °C	-25 °C	SPST-NO	Panel Mount, Front	No Marking	500000 Cycles	100 mA	35 V	Off-Mom	Standard	White	IP65 - Dust Tight, Water Resistant
