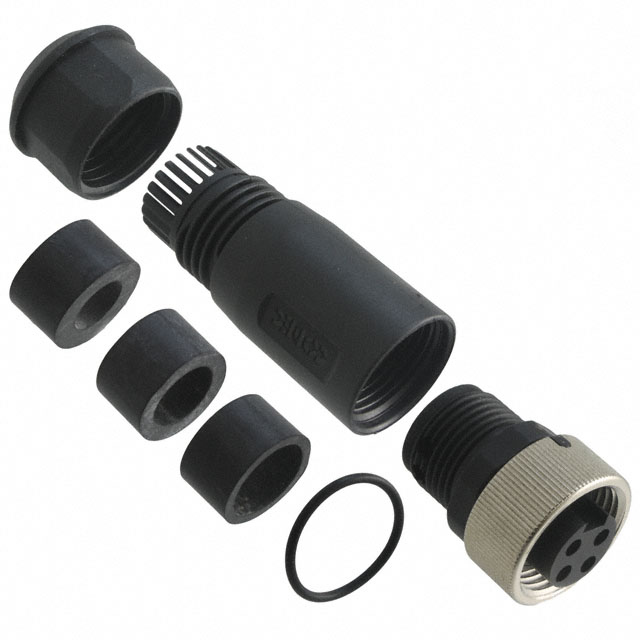

Specification	41-00002

Applications	Automotive, Industrial
Cable Opening (Max)	0.472 in
Cable Opening (Min)	0.236 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	9 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	TPU, Thermoplastic Polyurethane
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon 6, Glass Filled, Polyamide (PA6)
Shell Size - Insert (Maximum)	4 S
Shell Size - Insert (Minimum)	0.875
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 V

41-0000 Series

Part	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection Description	Ingress Protection IP Rating	Contact Material	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Finish - Mating	Shielding	Number of Positions	Fastening Type	Current Rating	Connector Type	Applications	Features	Mounting Type	Voltage Rating	Cable Opening (Max)	Cable Opening (Min)	Termination	Primary Material	Shell Material	Orientation	Position Types	Shell Size - Insert
McGill Microwave Systems 41-00005	UL94	4 S	0.875	Dust Tight Waterproof	IP67	Copper Zinc	Thermoplastic Polyurethane TPU	-40 °C	85 °C	Black	Gold	Unshielded	4	Threaded	9 A	Male Pins Receptacle	Automotive Industrial	Backshell	Free Hanging (In-Line)	250 V	0.472 in	0.236 in	Screw	Plastic	Glass Filled Nylon 6 Polyamide (PA6)	Keyed
McGill Microwave Systems 41-00001	UL94			Dust Tight Waterproof	IP67	Copper Zinc	Thermoplastic Polyurethane TPU	-40 °C	85 °C	Black Silver	Gold	Unshielded	3	Threaded	12 A	Female Sockets Plug	Automotive Industrial	Backshell Coupling Nut	Free Hanging (In-Line)	250 V	0.472 in	0.236 in	Screw	Plastic	Glass Filled Nylon 6 Polyamide (PA6)	Keyed	PE	7/8"-3
McGill Microwave Systems 41-00003	UL94	5 in	0.875 in	Dust Tight Waterproof	IP67	Copper Zinc	Thermoplastic Polyurethane TPU	-40 °C	85 °C	Black Silver	Gold	Unshielded	5	Threaded	9 A	Female Sockets Plug	Automotive Industrial	Backshell Coupling Nut	Free Hanging (In-Line)	250 V	0.472 in	0.236 in	Screw	Plastic	Glass Filled Nylon 6 Polyamide (PA6)	Keyed	PE	7/8"-5
McGill Microwave Systems 41-00002	UL94	4 S	0.875	Dust Tight Waterproof	IP67	Copper Zinc	Thermoplastic Polyurethane TPU	-40 °C	85 °C	Black Silver	Gold	Unshielded	4	Threaded	9 A	Female Sockets Plug	Automotive Industrial	Backshell Coupling Nut	Free Hanging (In-Line)	250 V	0.472 in	0.236 in	Screw	Plastic	Glass Filled Nylon 6 Polyamide (PA6)	Keyed
McGill Microwave Systems 41-00006	UL94	5 in	0.875 in	Dust Tight Waterproof	IP67	Copper Zinc	Thermoplastic Polyurethane TPU	-40 °C	85 °C	Black	Gold	Unshielded	5	Threaded	9 A	Male Pins Receptacle	Automotive Industrial	Backshell	Free Hanging (In-Line)	250 V	0.472 in	0.236 in	Screw	Plastic	Glass Filled Nylon 6 Polyamide (PA6)	Keyed	PE	7/8"-5
