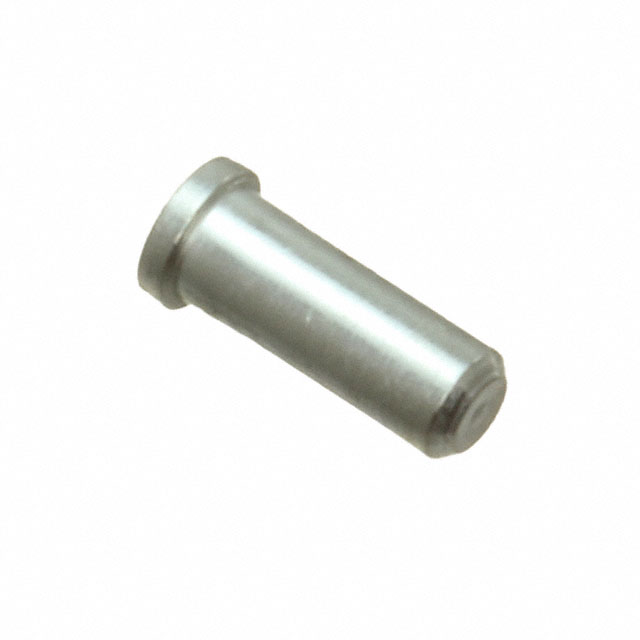

0327-0-15-80-34-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0327-0-15-80-34-80-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.31 mm
Flange Diameter [diameter]	0.091 in
Length - Overall [x]	0.206 "
Length - Overall [x]	5.23 mm
Mounting Hole Diameter [diameter]	1.91 mm
Mounting Hole Diameter [diameter]	0.075 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	4.57 mm
Socket Depth	0.18 in
Tail Type	No Tail
Termination	Solder

Part	Termination	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Contact Finish	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0327-0-15-80-34-80-10-0	Solder	0.206 "	5.23 mm	-55 °C	125 °C	1.63 mm	0.064 in	200 Áin	5.08 Ám	0.81 mm 1.17 mm	0.046 in	0.032 "	No Tail	2.31 mm	0.091 in	1.91 mm	0.075 in	Beryllium Copper	Tin	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0327-0-15-01-34-01-10-0	Solder	0.206 "	5.23 mm	-55 °C	125 °C	1.63 mm	0.064 in	200 Áin	5.08 Ám	0.81 mm 1.17 mm	0.046 in	0.032 "	No Tail	2.31 mm	0.091 in	1.91 mm	0.075 in	Beryllium Copper	Tin-Lead	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0327-0-15-80-34-14-10-0	Solder	0.206 "	5.23 mm	-55 °C	125 °C	1.63 mm	0.064 in	10 Áin	0.25 Ám	0.81 mm 1.17 mm	0.046 in	0.032 "	No Tail	2.31 mm	0.091 in	1.91 mm	0.075 in	Beryllium Copper	Gold	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0327-0-15-01-34-14-10-0	Solder	0.206 "	5.23 mm	-55 °C	125 °C	1.63 mm	0.064 in	10 Áin	0.25 Ám	0.81 mm 1.17 mm	0.046 in	0.032 "	No Tail	2.31 mm	0.091 in	1.91 mm	0.075 in	Beryllium Copper	Gold	4.57 mm	0.18 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder
