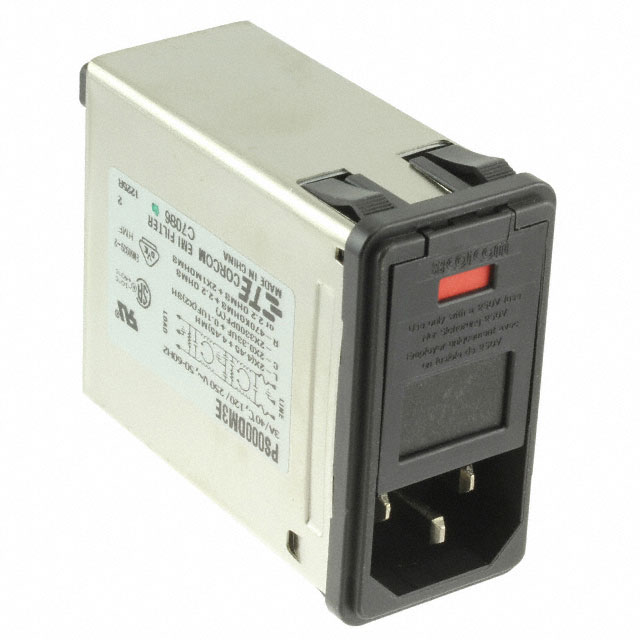

PS000DM3E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
PS000DM3E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PS000DM3E |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 3 A |
| Current Rating - Filter | 3 A |
| Features | Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness [Max] | 2.9 mm |
| Panel Thickness [Max] | 0.114 in |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Termination | 0.187 " |
| Termination | 4.7 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 36 | $ 35.46 | |
PS00 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Termination | Termination | Termination | Fuse Holder, Drawer | Approval Agency | Features | Current Rating - Filter | Connector Type | Voltage Rating - Appliance Inlet [Max] | Voltage Rating - Appliance Inlet [Min] | Accomodates a Fuse | Connector Style | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Panel Cutout Dimensions | Mounting Type | Filter Type | Current Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors PS000DM3E | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder, Twin Fused | CSA, UL, VDE | Shielded | 3 A | Receptacle, Male Blades - Module | 250 VAC | 120 VAC | IEC 320-C14 | 2.9 mm | 0.114 in | 0.79 mm | 0.031 " | Variable Size | Panel Mount, Snap-In | Filtered (EMI, RFI) - Commercial | 3 A |
Description
General part information
PS00 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
