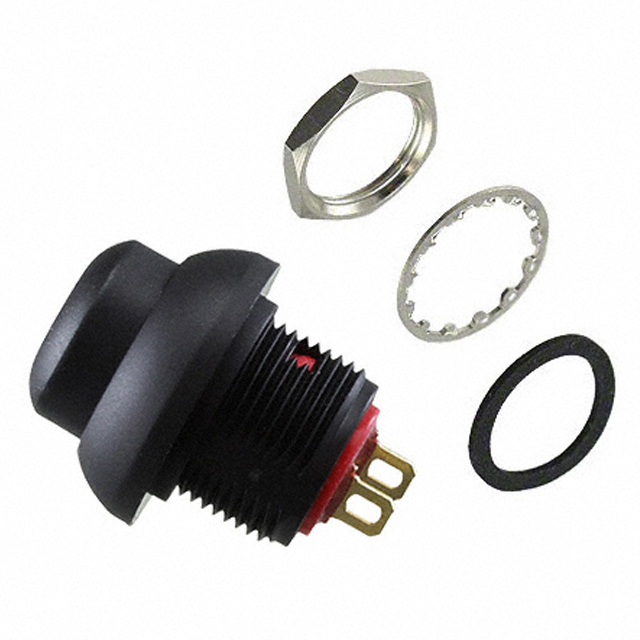

RP8101B2M1CEBLKBLKNIL

Active

E-Switch

SWITCH PUSH SPST-NO 0.125A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 0.125A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RP8101B2M1CEBLKBLKNIL

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA, 100 mA
Electrical Life	500000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

Part	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Type	Electrical Life	Mounting Type	Voltage Rating - AC	Termination Style	Actuator Marking	Voltage Rating - DC	Ingress Protection	Circuit	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
E-Switch RP8101B2M1CEBLKREDNIL	Off-Mom	Button Round	13.6 mm	Standard	500000 Cycles	Panel Mount Front	125 V	Solder Lug	No Marking	50 VDC	IP67 - Dust Tight Waterproof	SPST-NO	Red	100 mA 125 mA	-30 ░C	85 °C
E-Switch RP8101B2M1CEBLKBLKNIL	Off-Mom	Button Round	13.6 mm	Standard	500000 Cycles	Panel Mount Front	125 V	Solder Lug	No Marking	50 VDC	IP67 - Dust Tight Waterproof	SPST-NO	Black	100 mA 125 mA	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

No documents available
