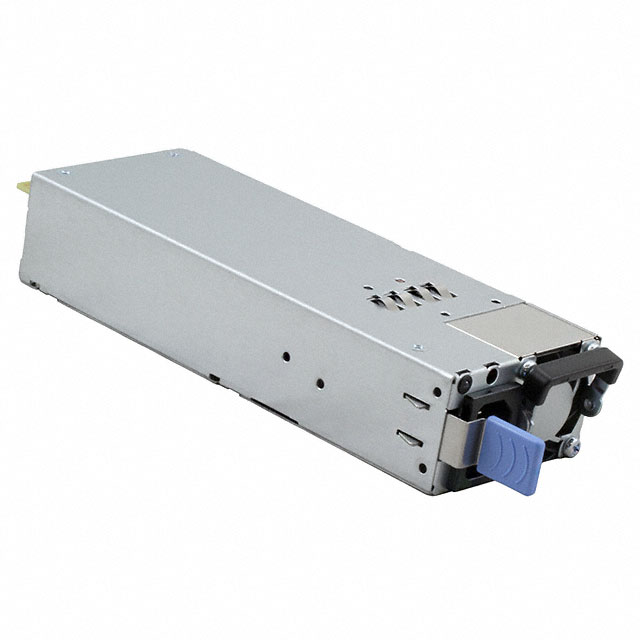

DPS-550AB-11 D

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 550W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 550W

Technical Specifications

Parameters and characteristics for this part

Specification	DPS-550AB-11 D

Applications	ITE (Commercial)
Approval Agency	CB, CCC, KC, TUV, CE, UR
Current - Output 1	45 A
Efficiency	94 %
Features	80 Plus® Platinum, PFC, Remote Sense, Remote On/Off, Standby Output, Universal Input, PMBus™
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	550 W
Size / Dimension [x]	7.28 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	2.89 in
Size / Dimension [y]	73.5 mm
Size / Dimension [z]	39 mm
Size / Dimension [z]	1.54 "
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Efficiency	Current - Output 1	Approval Agency	Applications	Number of Outputs	Features	Mounting Type	Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Power (Watts)
Delta Electronics DPS-550AB-11 D	94 %	45 A	CB CCC CE KC TUV UR	ITE (Commercial)	1	80 Plus® Platinum PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	Rack Mount	Front End	90 VAC	264 VAC	7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	12 V	550 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
