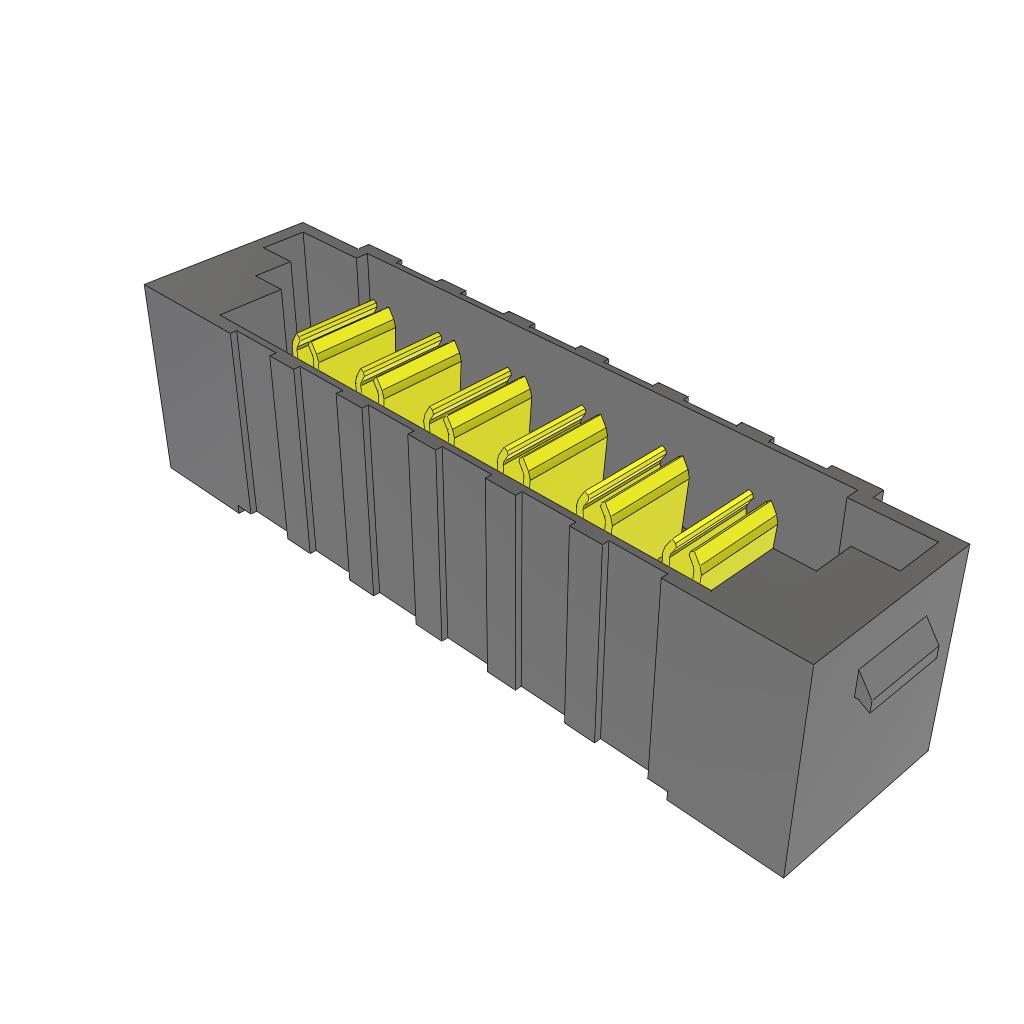

PET-06-01-S-VT
ActiveSamtec Inc.
CONN HDR 6POS 6.35MM PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
PET-06-01-S-VT
ActiveSamtec Inc.
CONN HDR 6POS 6.35MM PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PET-06-01-S-VT |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 40 A |
| Fastening Type | Locking Ramp |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Termination | Solder |
| Voltage Rating | 1025 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 40 | $ 16.82 | |
Description
General part information
PET-06 Series
6 Position Header, Male Blades Connector Solder 0.250" (6.35mm) Through Hole
Documents
Technical documentation and resources
