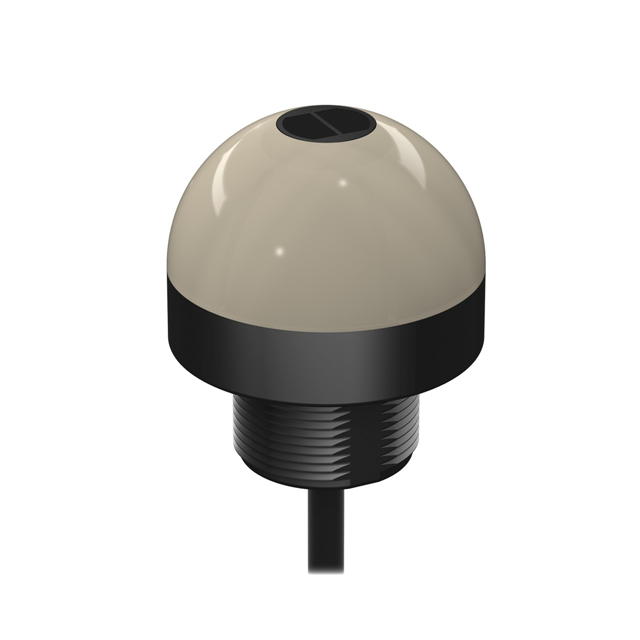

K50APFF50GXDQP

Active

BANNER ENGINEERING

K50 D-SERIES EZ-LIGHT: 1-COLOR FIXED-FIELD SENSOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K50APFF50GXDQP

Active

BANNER ENGINEERING

K50 D-SERIES EZ-LIGHT: 1-COLOR FIXED-FIELD SENSOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K50APFF50GXDQP

Actuator Type	Domed, Round, Button
Approval Agency	cULus, CE
Circuit	SPST-NO
Illumination Type, Color	LED, Green
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Response Time	3 ms
Switch Function	Off-Mom
Termination Style	Cable with Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

K50AP Series

Part	Response Time	Actuator Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Switch Function	Termination Style	Illumination Type, Color	Approval Agency	Mounting Type	Circuit	Ingress Protection	Illumination Type, Color [custom]	Illumination Type, Color [custom]
BANNER ENGINEERING K50APT2GYCQ	50 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green LED Yellow	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APFF100RGXC11Q	3 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green LED	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APFF100GXDQ	3 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green LED	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APT2GREQ	50 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green/Red LED	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APFF50GRCQ	3 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green/Red LED	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APFF50GRYC3Q	10 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green LED Red Yellow	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APFF50GXDQP	3 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Cable with Connector (M12)	Green LED	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APTBGCQ	50 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)		CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K	Blue/Green	LED
BANNER ENGINEERING K50APTYGCQ	50 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Connector (M12)	Green LED Yellow	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K
BANNER ENGINEERING K50APFF100GYCQPMA	3 ms	Button Domed Round	12 V	30 VDC	-40 °C	50 °C	30 mm	Off-Mom	Cable with Connector (M12)	Green LED Yellow	CE cULus	Panel Mount Front	SPST-NO	IP67 IP69K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.00
Newark	Each	1	$ 159.00

Description

General part information

K50AP Series

K50 D-SERIES EZ-LIGHT: 1-COLOR FIXED-FIELD SENSOR

Documents

Technical documentation and resources
