General part information

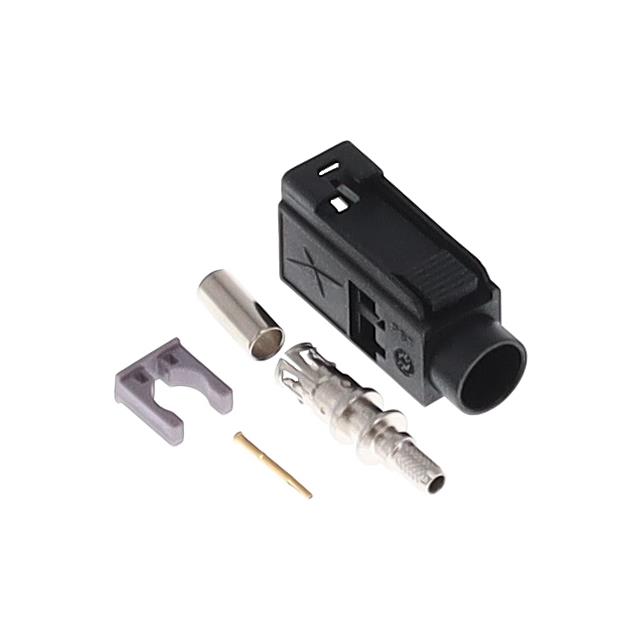

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical documentation and resources
Parameters and characteristics for this part
| Specification | FK1FADK |
|---|---|
| Cable Group | RG-174, 316 |
| Connector Style | SMB, Fakra |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Features | Code A |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
FAKRA GEN 1 CODE A SMB(F)ST FOR RG-174/RG-316 BLACK
| Part | Connector Type | Mounting Type | Frequency - Max [Max] | Contact Termination | Features | Mating Cycles | Impedance | Connector Style | Fastening Type | Shield Termination | Housing Color | Number of Ports | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TAOGLAS FK1FADK | Female Socket, Jack | Free Hanging (In-Line) | 6000 MHz | Crimp | Code A | 25 | 50 Ohms | Fakra, SMB | Latch Lock | Crimp | Black | 1 | 316, RG-174 | -40 °C | 105 ░C |
