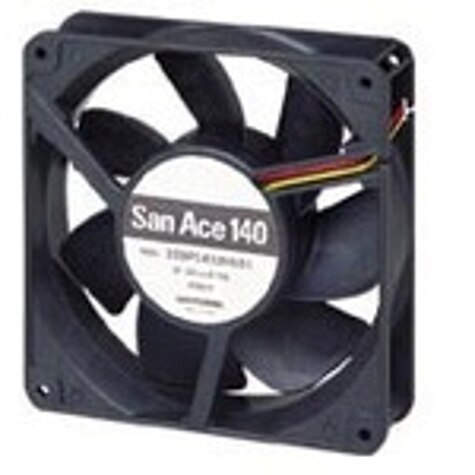

Specification	109P1424M102

Air Flow	117 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Noise	38 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	3.84 W
RPM	1900 RPM
Size / Dimension Height	140 mm
Size / Dimension Length	140 mm
Size / Dimension Shape	Square
Static Pressure	0.209 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Weight	0.993 lb
Width	38 mm

9P Type Series

Part	Voltage - Rated	Noise	Termination Leads Count	Termination Type	Termination	Features	Air Flow	Operating Temperature (Min)	Operating Temperature (Max)	Width	RPM	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Fan Type	Power (Watts)	Weight	Approval Agency	Static Pressure	Bearing Type	Lifetime	Material - Frame	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Material - Blade
Sanyo Denki America Inc. 109P0405F3D013	5 VAC	30 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Sensor	8.6 CFM	-4 °F	158 °F	28 mm	6700 RPM	40 mm	Square	40 mm	Tubeaxial	1.4 W	0.115 lb	CSA TUV UL	0.236 in H2O	Ball	60000 Hrs	Plastic	5.5 VDC	4.5 VDC	0.28 A	Plastic
Sanyo Denki America Inc. 109P1312S1021	12 VAC	47 dB	2 leads	Wire Leads	2 Wire Leads	Locked Rotor Protection	148 CFM	-20 °C	60 °C	38 mm	3300 RPM	5 in	Square	5 in	Tubeaxial	15.6 W	0.772 lb	CSA TUV UL	0.472 in H2O	Ball
Sanyo Denki America Inc. 109P0624J7D01	24 VAC	44 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Sensor	21.5 CFM	-20 °C	60 °C	15 mm	6200 RPM	60 mm	Square	60 mm	Tubeaxial	3.36 W	0.133 lb	CSA TUV UL	0.347 in H2O	Ball	40000 Hrs	Plastic	27.6 VDC	14 VDC	140 mA	Plastic
Sanyo Denki America Inc. 109P0424H9D01	24 VAC		3	Wire Leads	3 Wire Leads	Locked Rotor Sensor				10 mm		40 mm	Square	40 mm	Tubeaxial			CSA TUV UR		Ball		Plastic				Plastic
Sanyo Denki America Inc. 109P0512H702	12 VAC	27 dB	2 leads	Wire Leads	2 Wire Leads	Locked Rotor Protection	9 CFM	-4 °F	158 °F	15 mm	4600 RPM	52 mm	Square	52 mm	Tubeaxial	1.2 W	0.122 lb	CSA TUV UL	0.128 in H2O	Ball	60000 Hrs	Plastic	13.8 VDC	7 V	100 mA	Plastic
Sanyo Denki America Inc. 109P0412G3D01	12 VAC	42 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Sensor		-20 °C	60 °C	28 mm	11500 RPM	40 mm	Square	40 mm	Tubeaxial	3.72 W	0.115 lb	CSA TUV UL		Ball
Sanyo Denki America Inc. 109P0612B701	12 VAC	21 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	7.4 CFM	-4 °F	158 °F	15 mm	2200 RPM	60 mm	Square	60 mm	Tubeaxial	600 mW	0.133 lb	CSA TUV UL	0.047 in H2O	Ball
Sanyo Denki America Inc. 109P0824H6D01	24 VAC	31 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Sensor	29.7 CFM	-4 °F	158 °F	20 mm	2900 RPM	80 mm	Square	80 mm	Tubeaxial	2.88 W	0.222 lb	CSA TUV UL	0.118 in H2O	Ball	60000 Hrs	Plastic	27.6 VDC	20.4 VDC	120 mA	Plastic
Sanyo Denki America Inc. 109P0812M601	12 VAC	25 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	23.7 CFM	-4 °F	158 °F	20 mm	2300 RPM	80 mm	Square	80 mm	Tubeaxial	1.56 W	0.222 lb	CSA TUV UL	0.075 in H2O	Ball	60000 Hrs	Plastic	13.8 VDC	10.2 VDC	0.13 A	Plastic
Sanyo Denki America Inc. 109P1424H1D01	24 VAC	46 dB	3	Wire Leads	3 Wire Leads	Locked Rotor Sensor	159 CFM	-4 °F	158 °F	38 mm	2600 RPM	140 mm	Square	140 mm	Tubeaxial	8.88 W	0.993 lb	CSA TUV UL	0.378 in H2O	Ball
