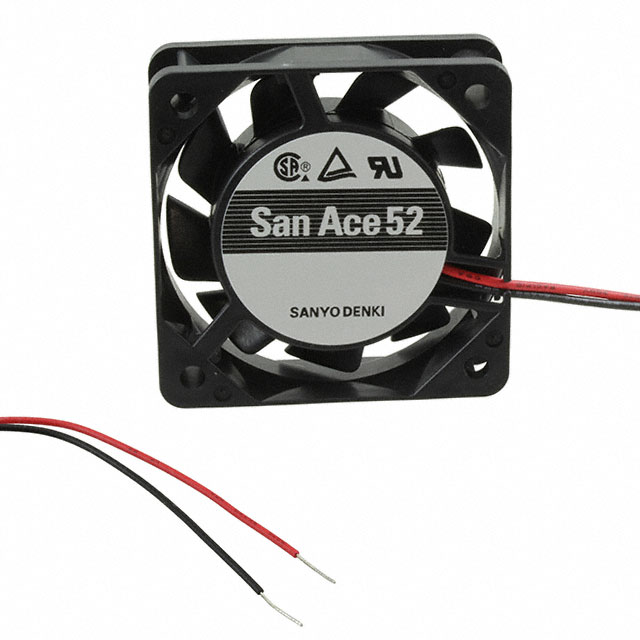

109P0512H702
ActiveSanyo Denki America Inc.
FAN AXIAL 52X15MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
109P0512H702
ActiveSanyo Denki America Inc.
FAN AXIAL 52X15MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 109P0512H702 |
|---|---|
| Air Flow | 0.252 mł/min |
| Air Flow | 9 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 27 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 1.2 W |
| RPM | 4600 RPM |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [z] | 52 mm |
| Static Pressure | 31.8 Pa |
| Static Pressure | 0.128 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 55.34 g |
| Weight | 0.122 lb |
| Width [x] | 15 mm |
109P0512 Series
| Part | Size / Dimension [x] | Size / Dimension [z] | Air Flow | Air Flow | Power (Watts) | Voltage - Rated | Voltage Range [Min] | Voltage Range [Max] | Fan Type | Termination | Static Pressure | Static Pressure | Width [x] | Bearing Type | Noise | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Current Rating (Amps) | Material - Blade | Material - Frame | Weight | Weight | Features | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | 52 mm | 52 mm | 0.252 mł/min | 9 CFM | 1.2 W | 12 VDC | 7 V | 13.8 VDC | Tubeaxial | 2 Wire Leads | 31.8 Pa | 0.128 in H2O | 15 mm | Ball | 27 dB(A) | 4600 RPM | -20 °C | 70 °C | -20 C | 70 °C | CSA TUV UL | 100 mA | Plastic | Plastic | 55.34 g | 0.122 lb | ||
Sanyo Denki America Inc. | 52 mm | 52 mm | 0.252 mł/min | 9 CFM | 1.2 W | 12 VDC | 7 V | 13.8 VDC | Tubeaxial | 3 Wire Leads | 31.8 Pa | 0.128 in H2O | 15 mm | Ball | 27 dB(A) | 4600 RPM | -20 °C | 70 °C | -20 C | 70 °C | CSA TUV UL | 100 mA | Plastic | Plastic | 55.34 g | 0.122 lb | Locked Rotor Sensor | |
Sanyo Denki America Inc. | 52 mm | 52 mm | 0.252 mł/min | 9 CFM | 1.2 W | 12 VDC | 7 V | 13.8 VDC | Tubeaxial | 3 Wire Leads | 31.8 Pa | 0.128 in H2O | 15 mm | Ball | 27 dB(A) | 4600 RPM | -20 °C | 70 °C | -20 C | 70 °C | CSA TUV UL | 100 mA | Plastic | Plastic | 55.34 g | 0.122 lb | Locked Rotor Protection Speed Sensor (Tach) | |
Sanyo Denki America Inc. | 52 mm | 52 mm | 0.006 m³/min | 0.205 CFM | 840 mW | 12 VDC | 7 V | 13.8 VDC | Tubeaxial | 3 Wire Leads | 21.5 Pa | 0.086 in H2O | 15 mm | Ball | 22 dB(A) | 3700 RPM | -20 °C | 70 °C | -20 C | 70 °C | CSA TUV UL | 70 mA | Plastic | Plastic | 55.34 g | 0.122 lb | Locked Rotor Sensor | |
Sanyo Denki America Inc. | 52 mm | 52 mm | 0.37 m³/min | 13.2 CFM | 2.52 W | 12 VDC | 10.2 VDC | 13.8 VDC | Tubeaxial | 3 Wire Leads | 69.7 Pa | 0.28 in H2O | 15 mm | Ball | 36 dB | 6800 RPM | -20 °C | 70 °C | -20 C | 70 °C | CSA TUV UL | 0.21 A | Plastic | Plastic | 55.34 g | 0.122 lb | Locked Rotor Sensor | 40000 Hrs |
Sanyo Denki America Inc. | 52 mm | 52 mm | 0.006 m³/min | 0.205 CFM | 840 mW | 12 VDC | 7 V | 13.8 VDC | Tubeaxial | 2 Wire Leads | 21.5 Pa | 0.086 in H2O | 15 mm | Ball | 22 dB(A) | 3700 RPM | -20 °C | 70 °C | -20 C | 70 °C | CSA TUV UL | 70 mA | Plastic | Plastic | 55.34 g | 0.122 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.12 | |
| 10 | $ 13.48 | |||
| 25 | $ 12.68 | |||
| 50 | $ 12.20 | |||
| 140 | $ 11.23 | |||
| 280 | $ 10.51 | |||
| 560 | $ 10.35 | |||
Description
General part information
109P0512 Series
Fan Tubeaxial 12VDC Square - 52mm L x 52mm H Ball 9.0 CFM (0.252mł/min) 2 Wire Leads
