Specification	SJS512100

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	Blue
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-65 °C
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7
Shell Size - Insert	7
Shielding	Unshielded
Type	For Female Sockets

SJS51 Series

Part	Shielding	Number of Positions	Contact Size	Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Contact Type	Material Flammability Rating	Note	Connector Type	Housing Color	Contact Shape	Shell Size - Insert	Shell Size - Insert	Fastening Type

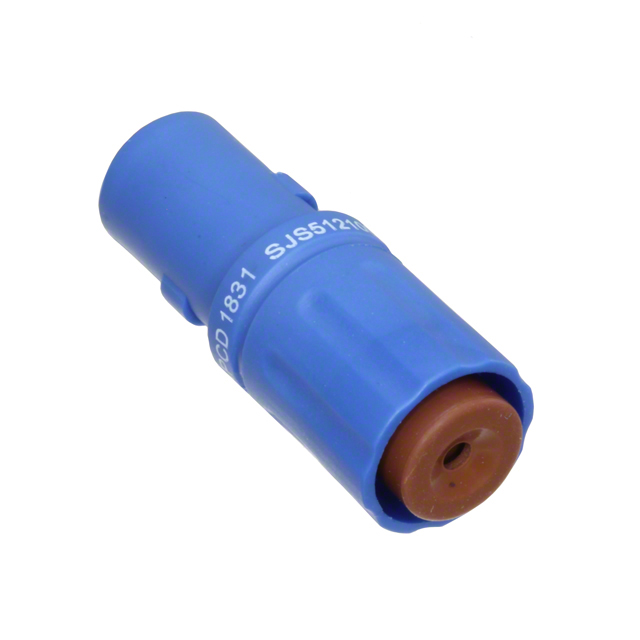

McGill Microwave Systems SJS512100	Unshielded	1	12	For Female Sockets	155 °C	-65 °C	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Nylon 6/6 Polyamide (PA66)	Crimp	UL94 V-0	Contacts Not Included	Plug Housing	Blue	Circular	7	7	Detent Lock

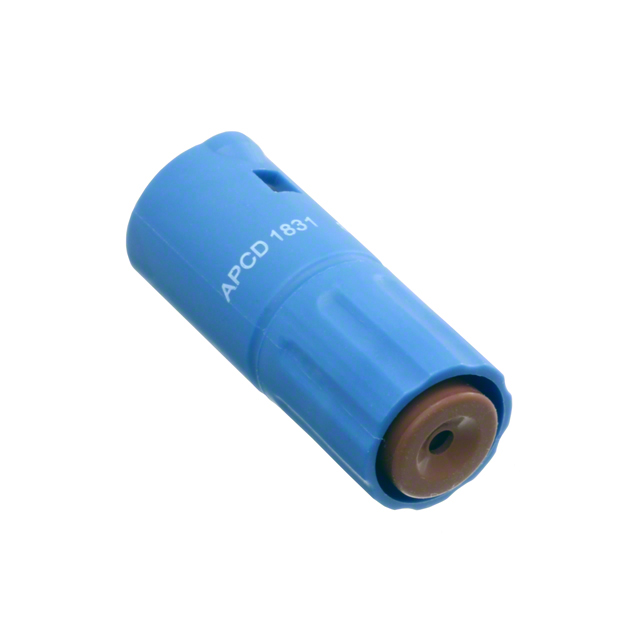

McGill Microwave Systems SJS512200	Unshielded	1	12	For Male Pins	155 °C	-65 °C	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Nylon 6/6 Polyamide (PA66)	Crimp	UL94 V-0	Contacts Not Included	Receptacle Housing	Blue	Circular	7	7	Detent Lock
