VTB1113BH
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 580NM RADIAL
VTB1113BH
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 580NM RADIAL
Description
General part information
VTB1113 Series

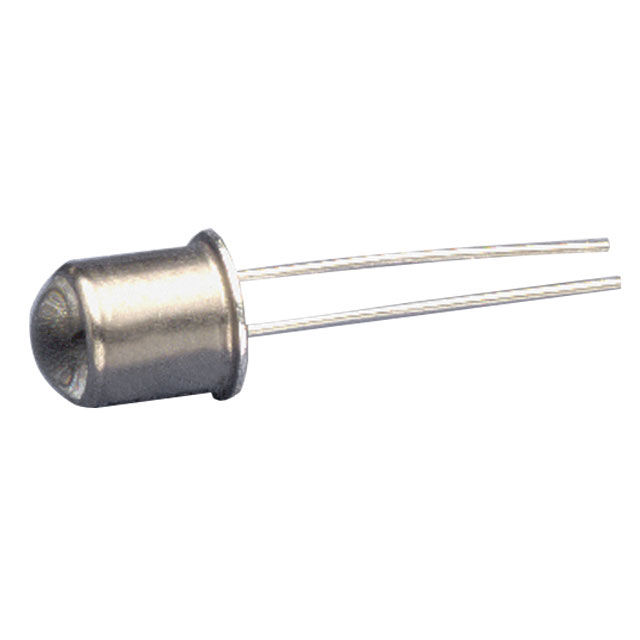

Photodiode 580nm 30° Radial, Lensed Metal Can, TO-46-2
Technical Specifications
Parameters and characteristics for this part
| Specification | VTB1113BH |
|---|---|
| Active Area | 1.6 mm² |
| Current - Dark (Typ) | 20 pA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Lensed Metal Can, TO-46-2, Radial |
| Spectral Range (Maximum) | 720 nm |
| Spectral Range (Minimum) | 330 nm |
| Viewing Angle | 30 ° |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Wavelength | 580 nm |
