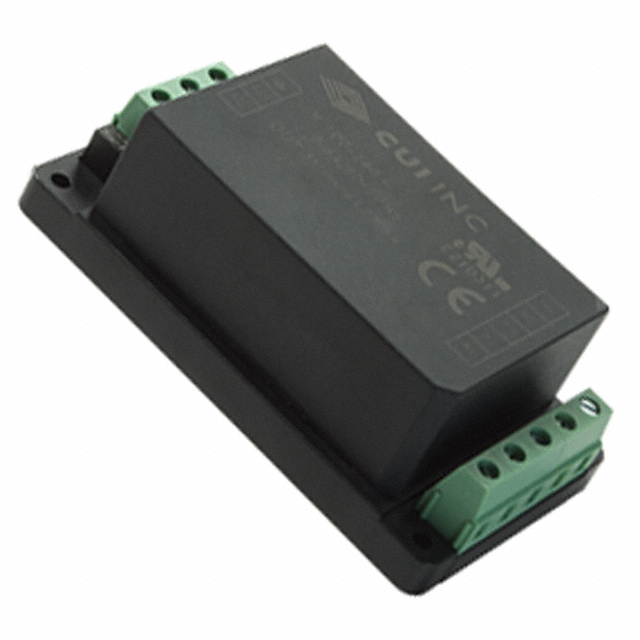

Specification	VSK-S25-12U-T

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Current - Output 1	2.1 A
Efficiency	82 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	25 W
Size / Dimension Height	1.26 in
Size / Dimension Length	3.78 in
Size / Dimension Width	2.17 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	12 V

VSK-S25 Series

Part	Efficiency	Power (Watts)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Current - Output 1	Number of Outputs	Approval Agency	Type	Features	Applications	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Output 1	Mounting Type	Voltage - Isolation	Operating Temperature (Min)	Operating Temperature (Max)	Line Regulation	Standard Number	Weight	Load Regulation (Percent)	Current - Output (Max)	Package / Case
CUI Inc. VSK-S25-15U-T	83 %	25 W	85 VAC	264 V	1.6 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 in	3.78 in	2.17 in	15 V	Chassis Mount	3 kV	-40 °C	70 °C
CUI Inc. VSK-S25-9U-T	78 %	25 W	85 VAC	264 V	2.5 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 in	3.78 in	2.17 in	9 V	Chassis Mount	3 kV	-40 °C	70 °C
CUI Inc. VSK-S25-48U	87 %	25 W	85 VAC	264 V		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)	0.94 in	2.75 in	1.89 in	48 V	Through Hole		-40 °C	70 °C	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	1 %	500 mA	6-DIP Module
CUI Inc. VSK-S25-12U-T	82 %	25 W	85 VAC	264 V	2.1 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 in	3.78 in	2.17 in	12 V	Chassis Mount	3 kV	-40 °C	70 °C
CUI Inc. VSK-S25-12U	82 %	25 W	85 VAC	264 V		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)	0.94 in	2.75 in	1.89 in	12 V	Through Hole		-40 °C	70 °C	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	1 %	2.1 A	6-DIP Module
CUI Inc. VSK-S25-15U	83 %	25 W	85 VAC	264 V		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)	0.94 in	2.75 in	1.89 in	15 V	Through Hole		-40 °C	70 °C	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	1 %	1.6 A	6-DIP Module
CUI Inc. VSK-S25-48U-T	87 %	25 W	85 VAC	264 V	500 mA	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 in	3.78 in	2.17 in	48 V	Chassis Mount	3 kV	-40 °C	70 °C
CUI Inc. VSK-S25-24U	85 %	25 W	85 VAC	264 V		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)	0.94 in	2.75 in	1.89 in	24 V	Through Hole		-40 °C	70 °C	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	1 %	1.1 A	6-DIP Module
CUI Inc. VSK-S25-24U-T	85 %	25 W	85 VAC	264 V	1.1 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 in	3.78 in	2.17 in	24 V	Chassis Mount	3 kV	-40 °C	70 °C
